ASTM A514 Steel Plate: Properties, Welding, Composition, and Equivalent Grades

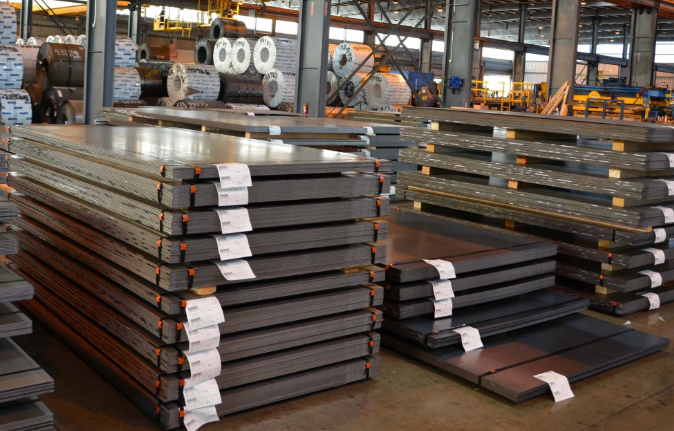

ASTM A514 steel plate is a high-strength, low-alloy (HSLA) quenched and tempered steel primarily used in structural applications that require superior strength and impact toughness. With a yield strength of up to 100 ksi (690 MPa), A514 steel plate offers a balance of strength, weldability, and formability — making it suitable for cranes, heavy construction equipment, bridges, and mining machinery.

For distributors and contractors, understanding a514 steel properties is crucial to ensure the material meets project requirements for safety, durability, and cost efficiency. This article will combine technical explanations with practical insights from the supply and trade perspective.

For projects where failure is not an option, understanding these properties is the first step; sourcing it from a reliable partner is the critical next one.

A514 Steel Properties

The key advantage of A514 steel properties lies in its combination of high yield strength, good weldability, and excellent toughness even at low temperatures. These mechanical characteristics allow engineers and fabricators to reduce material thickness without compromising structural integrity.

Property	Typical Range	Notes
Yield Strength (MPa)	620 – 690	Enables lighter, more efficient designs. Reduce structural weight by up to 25-30% compared to lower-grade steels, saving on material and logistics costs.
Tensile Strength (MPa)	690 – 890	Ensures resistance to fracture under heavy stress
Elongation (%)	18 – 20	Provides crucial safety margin. Ensures the steel will deform before catastrophic failure, a key safety feature in dynamic load applications.
Hardness	235 – 293 Brinell HB	Balances wear resistance with a514 steel machinability
Impact Toughness	≥ 20 ft·lbf @ -18°C	Ideal for cold-climate operations. Guarantees performance in offshore, Arctic, and high-altitude environments where brittle fracture is a risk.

👉 Thickness Effect: As with many high-strength steels, a514 yield strength may decrease slightly as plate thickness increases. This should be considered in structural design.

🔗 Learn more on our ASTM A514 Steel Plate Product Page.

Why Strength and Yield Matter for Heavy Structures

Contractors and structural engineers often ask: “Is a514 steel plate strong enough for heavy-duty structures?”

• High Yield Strength (≥620 MPa): Confidence in supporting heavy loads.
• Superior Tensile Strength: Suitable for bridges, lifting equipment, and offshore platforms.
• Balanced Hardness: A514 hardness provides wear resistance while ensuring good a514 steel welding performance.

Applications include:

• Bridge components 👉 Explore our stock range of A514 for bridge construction.
• Lifting and hoisting equipment
• Heavy machinery frames
• Offshore platforms

ASTM A514 Chemical Composition

The ASTM A514 chemical composition is carefully designed to provide strength through the combination of carbon, manganese, chromium, nickel, and molybdenum. The steel is quenched and tempered to achieve optimal mechanical balance.

Element	Composition (%)
Carbon (C)	0.12–0.21
Manganese (Mn)	0.70–1.00
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.035
Silicon (Si)	0.15–0.35
Chromium (Cr)	0.40–0.65
Nickel (Ni)	0.40–0.65
Molybdenum (Mo)	0.15–0.25
Vanadium (V)	≤ 0.06

This alloying system enhances both hardness and weldability, allowing A514 steel plate to maintain consistent performance across different fabrication processes.

A514 Steel Welding and Machinability

For contractors, two practical concerns are a514 steel welding and a514 steel machinability:

• Welding: A514 steel plate can be welded successfully with preheating and the right consumables. This reduces cracking risk and ensures structural integrity.
• Machinability: While harder than mild steel, a514 steel plate can be cut, drilled, and machined with standard equipment, with only moderate adjustments to cutting speed and tooling.

This balance ensures fabrication is efficient without significantly increasing construction costs.

A514 Steel Equivalent Grades

In international standards, A514 steel equivalent grades include materials with similar strength and alloy composition used in Europe and Asia. These equivalents provide flexibility for sourcing and fabrication across different regions.

Standard	Equivalent Grade	Description
EN 10025-6	S690QL	High-strength quenched and tempered plate
DIN	StE690V	Structural steel with high yield strength
GB/T 16270	Q690D / Q690E	High-strength low-alloy structural steel
JIS	E690	Quenched and tempered high-strength steel

These equivalents ensure global compatibility for A514 steel plate applications in projects such as bridges, cranes, and offshore structures.

👉 Note: Within ASTM, grades like A514 Grade B, E, H, and Q differ mainly in thickness ranges and mechanical balance, but all follow the same quenched and tempered process. For a detailed comparison between different grades, see our blog A514 Grade Comparison: Grade B, E, H, Q Differences

Practical Considerations for Contractors and Distributors

• Fabrication & Welding: Preheat recommended for thicker plates; consumables should match strength level.
• Thickness Selection: Verify values against project load requirements.
• Certification & Documentation: All plates are supplied in accordance with ASTM standards, ensuring full traceability.
• Supply & Availability: Common stock thicknesses (25–50 mm) are often preferred for faster delivery.

🔗 Need bulk supply or custom cutting service? Contact us via our Inquiry Page.

Conclusion

ASTM A514 steel plate combines high strength, reliable yield performance, and balanced hardness, making it an ideal choice for heavy-duty construction and industrial applications.

By understanding a514 steel properties, a514 hardness, a514 steel welding, and astm a514 chemical composition, distributors and contractors can reduce risk, optimize design, and ensure reliable project performance.

At CJM, we don’t just supply plate – we provide solutions for high-strength challenges.
