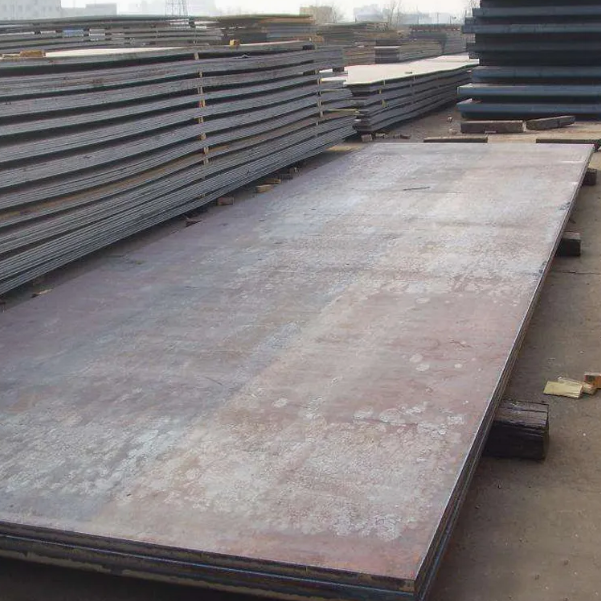

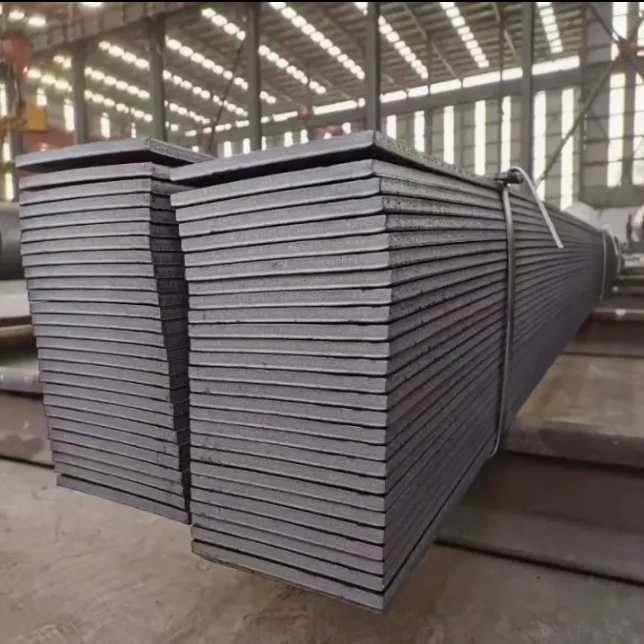

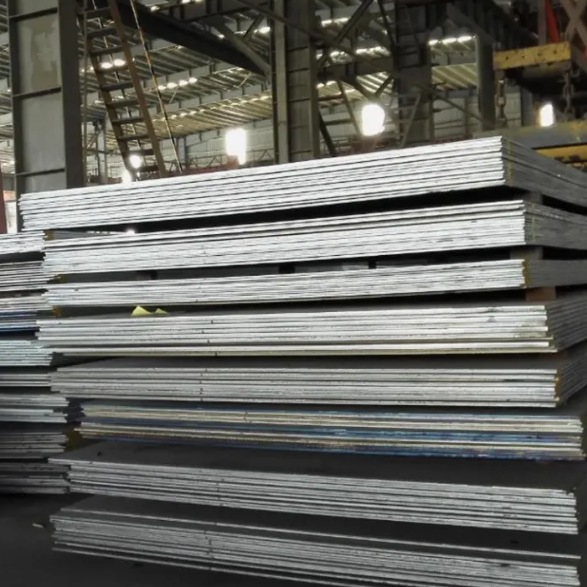

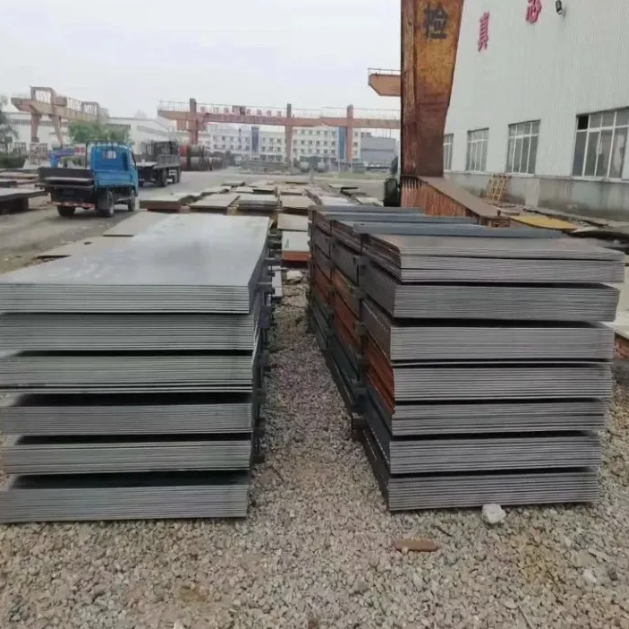

High-Strength A514 Carbon Steel Plate for Bridges, Cranes, and Heavy-Duty Structures

Key Advantages of A514 Carbon Steel Plate

• Reduce Structural Weight & Cost
The A514 carbon steel plate achieves up to 690 MPa yield strength, enabling lighter designs without compromising strength — ideal for cranes, bridges, and offshore structures.

• Fabrication-Ready Performance
Supplied with detailed welding procedure specifications (WPS) for smooth fabrication and guaranteed weld integrity.

• Verified Certification & Traceability
Every plate is delivered with full documentation, including Mill Test Certificates (MTC) and third-party inspection reports for complete traceability and compliance.

A514 Steel Plate Product Specifications

Product Name	A514 Carbon Steel Plate
Production Process	Hot Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	6mm-400mm(custom sizes available)
Delivery Conditions	Rolling, Annealing, Quenching, Tempered Or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Common Stock Sizes

Thickness (mm)	Width (mm)	Length (m)	Available Grades
6 – 100	1500 – 2500	6 – 12	A514 steel grades B / H / F
> 100 – 200	2000 – 3000	8 – 12	Custom on Request

*For in stock A514 carbon steel plate or project-specific sizes, contact our team to confirm availability.

*Custom cutting and non-standard sizes available upon request — perfect for customized A514 carbon steel plate orders.

ASTM A514 Steel Plate Chemical Composition

A514	C	Mn	P	S	Ni	Cr	Mo
Grade A	0.15-0.21	0.80-1.10	0.035	0.4-0.8	–	0.5-0.8	0.18-0.28
Grade B	0.12-0.21	0.70-1.0	0.035	0.20-0.35	–	0.4-0.65	0.15-0.25
Grade C	0.1-0.2	1.10-1.5	0.035	0.15-0.30	–	–	0.15-0.30
Grade E	0.12-0.20	0.4-0.7	0.035	0.2-0.4	–	1.40-2.0	0.4-0.6
Grade F	0.1-0.2	0.60-1.0	0.035	0.15-0.35	0.70-1.0	0.4-0.65	0.4-0.6
Grade H	0.12-0.21	0.95-1.3	0.035	0.20-0.35	0.3-0.7	0.4-0.65	0.2-0.3
Grade J	0.12-0.21	0.45-0.7	0.035	0.20-0.35	–	–	0.50-0.65

Note: The chemical composition of A514 steel plate determines its excellent strength, toughness, and weldability.

A514 Plate Mechanical Properties

A514	Thickness mm	Yield Strength Min Mpa	Tensile Strength Mpa	Elongation Rate Min%
	≤ 20	≥ 690	760-895	≥ 18
	20-65	≥ 690	760-895	≥ 18
	65-150	620	690-895	18

*Design & Procurement Insight
A yield strength of 690 MPa allows for thinner, lighter sections compared to standard carbon steel. This can reduce material tonnage and logistics costs by up to 25–30%, especially in weight-sensitive designs such as long-span bridges or mobile crane booms.

Related Reading

👉ASTM A514 Steel Plate: Properties, Welding, Composition, and Equivalent Grades Explained
👉 A514 Grade Comparison: Grade B / E / H / Q Differences

Applications of ASTM A514 Steel Plate

A514 steel plate is widely chosen when weight reduction, safety, and long service life are critical. Typical applications include:

• Military & Aerospace: durability in extreme conditions
• Construction & Bridges: reduced section weight without compromising safety
• Cranes & Heavy Machinery: lighter structures, higher efficiency
• Offshore Platforms & Energy: withstands marine corrosion and stress
• Petrochemical & Industrial Equipment: reliable under high pressure and temperature

Whether you are a distributor, contractor, or project engineer, A514 steel plate offers the strength and reliability needed for demanding projects.

Certified for Global Projects

To meet international quality demands, each A514 carbon steel plate is supplied with:

• Full Mill Test Certificate (MTC) verifying chemistry and mechanical data
• Compliance with ASTM / ASME / EN / ISO standards
• Optional third-party inspection (SGS / BV / Lloyd’s) for export projects

We provide traceable documents for every order — ideal for EPC contractors, distributors, and A514 plate suppliers serving global markets.

Your Reliable A514 Plate Supply Partner

We support global buyers looking for A514 carbon steel plate from China, offering:

• OEM & customized A514 carbon steel plate fabrication (cutting, drilling, edge beveling)
• Ready inventory of in stock A514 carbon steel plate for urgent projects
• Fast delivery through seaports with export-ready packaging

As one of the trusted China A514 carbon steel plate exporters, CJM ensures stable supply and competitive pricing worldwide.

Ready to Specify ASTM A514 steel plate with Confidence?

For detailed specifications, stock availability, or a custom quote, contact our sales team today. Ensure your project uses reliable, high-strength ASTM A514 steel plate for maximum safety and efficiency.

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
