U Channel Steel Guide for Distributors & Construction Companies

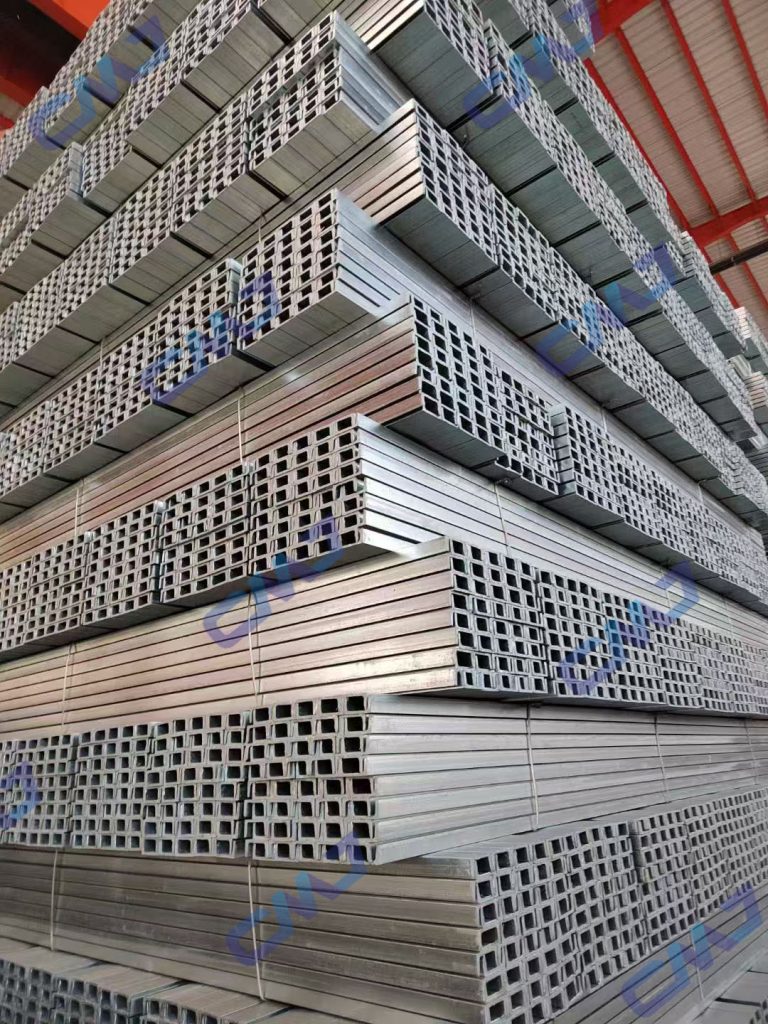

U Channel Steel is a structural steel section with a U-shaped cross-section, widely used in construction projects and industrial frameworks. It provides strength, stability, and support for a variety of applications, from building frameworks to equipment supports. For distributors and construction companies, understanding the materials, dimensions, mechanical properties, and applications of U Channel Steel is essential for making informed purchasing decisions.

Standard U Channel Steel Sizes and Dimensions

U Channel Steel is produced in a wide range of sizes. Below is a U Channel Steel standard sizes chart showing common steel U channel sizes in mm (width × height × thickness):

• 40×20×3 mm
• 50×25×4 mm
• 60×30×4 mm
• 80×40×5 mm
• 100×50×5 mm
• 120×60×6 mm
• 150×75×6 mm
• 200×80×8 mm

These u channel steel standard sizes and dimensions in mm are commonly referenced in structural drawings, procurement lists, and fabrication planning, and these u channel steel sizes are widely used in general construction, roofing, solar frames, and industrial supports.

Important Note: Some size ranges overlap between different materials. For instance, both Mild Steel and Galvanized Steel U Channels can be produced in the 50–200 mm range. This does not mean they are identical—it simply reflects that the same dimension can be manufactured in different materials depending on application requirements.

U Channel Steel Size Chart (Weight & Section Properties)

To help distributors estimate load capacity and shipping costs, below is a simple U Channel Steel size and weight chart (approximate values):

Size (mm)	Approx. Inch Reference	Section Area (cm²)	Weight (kg/m)
40×20×3	~1.5 inch	2.0	1.6
50×25×4	~2 inch	3.3	2.6
60×30×4	~2.5 inch	4.1	3.2
80×40×5	~3 inch	6.0	4.7
100×50×5	~4 inch	7.6	6.0
120×60×6	~5 inch	10.5	8.2
150×75×6	~6 inch	14.2	11.2
200×80×8	~8 inch	22.1	17.4

*Inch values are approximate references for search and procurement convenience. Actual U Channel Steel production and engineering specifications are based on metric standards (mm).

How Engineers and Buyers Select U Channel Steel Sizes

Before choosing a specific U Channel Steel size, engineers and procurement managers typically evaluate several key factors to ensure structural safety and cost efficiency:

– Load-bearing requirements: Determine the expected loads and safety factors based on structural calculations.
– Span length and structural design: Longer spans usually require larger sections or thicker walls.
– Service environment: Indoor or outdoor use affects material choice due to corrosion resistance requirements.
– Applicable standards and compliance: Size availability and section properties may vary under GB/T, ASTM, or EN standards.

Common Materials for U Channel Steel

U Channel Steel is manufactured from different materials to suit various structural and environmental requirements. The most common materials include:

• Mild Steel U Channel: Cost-effective, easy to weld and cut, suitable for light construction frameworks, partitions, and warehouse structures.
• Carbon Steel U Channel: Offers higher strength for load-bearing applications such as industrial platforms, heavy equipment supports, and structural beams.
• High Performance Stainless Steel U Channel: Stainless steel U Channels provide excellent corrosion resistance, ideal for outdoor constructions, humid environments, or projects requiring long-term durability.
• GI U Channel (Galvanized U Channel Steel): Galvanized steel U Channels resist rust and are commonly used in roofing, solar panel mounting frames, and outdoor protective structures.

Most U Channels are hot rolled steel sections, ensuring high strength and reliability for structural applications in construction and heavy industry.

U Channel Steel Mechanical Properties (Typical Values)

Material	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
Mild Steel (Q235/S235)	235	370–500	26
Carbon Steel (Q355/S355)	355	470–630	22
304 Stainless Steel	215	505–735	40
316 Stainless Steel	290	515–760	40
Galvanized (GI) Steel	240	400–550	25

These U Channel Steel standard sizes and mechanical properties help engineers and distributors select the right grade for their projects.

U Channel vs C Channel – What’s the Difference?

When choosing between U Channel and C Channel, it is important to understand their differences:

• U Channel Steel: Has parallel flanges and a U-shaped profile. It is more suitable for light frameworks, roofing trusses, and protective edges.
• C Channel Steel: Has a slight inward flange, providing better resistance against twisting. It is commonly used in heavy load-bearing structures, columns, and industrial frames.

Engineers and distributors often compare U channel vs C channel to determine the best profile. For detailed C channel sizes, dimensions, and weight chart, see our dedicated guide on C Channel Steel.

U Channel Steel Standards and Certifications

To meet the needs of global buyers, U Channel Steel is produced in compliance with multiple international standards:

• China: GB/T 706-2016
• USA: ASTM A36 / ASTM A572
• Europe: EN 10025 series
• Others: JIS G3192 (Japan), IS 808 (India)

U Channel Steel Load Capacity Calculation

To better illustrate the practical performance of U Channel Steel, let’s take a simple engineering example:

• Condition: A U Channel is used as a horizontal beam with a span of 2 meters, supporting a uniformly distributed load of 5 kN/m.
• Selected section: 100×50×5 mm Carbon Steel U Channel (Yield Strength = 355 MPa).
• Simplified calculation:
  • Maximum bending moment = wL² / 8 = 5 × 2² / 8 = 2.5 kNm
  • Section modulus (Z) for this size ≈ 42 cm³ = 4.2×10⁻⁵ m³
  • Bending stress = M / Z = 2.5×10³ / 4.2×10⁻⁵ ≈ 59 MPa
• Result: The stress is well below the yield strength of 355 MPa, providing a safety factor of more than 5.

👉 This simple calculation demonstrates how to select U Channel Steel dimensions according to load requirements, which is critical for construction engineers and procurement managers. If you still can’t be sure about it, contact our team to get a free suggestion.

Steel U Channels Applications in Construction and Engineering

Steel U Channels are extremely versatile. Common uses include:

• Structural support for doors and windows in commercial and residential buildings

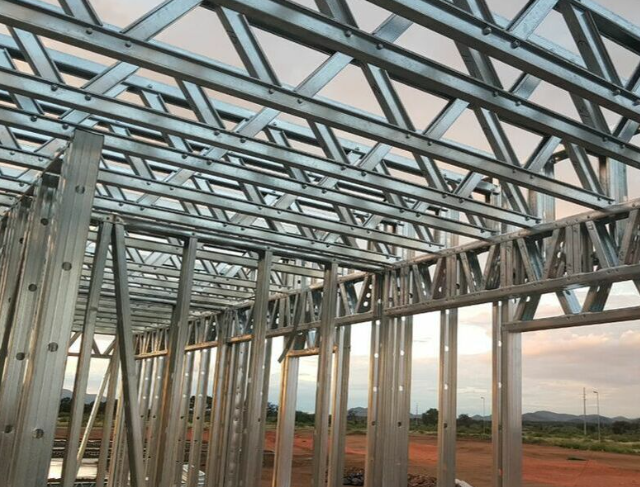

• Roof trusses and metal decking frameworks for warehouses and industrial buildings
• Pipe and cable supports in factories and utility installations
• Solar panel mounting rails for renewable energy projects
• Protective frames for heavy machinery and equipment
• Light frameworks for partitions, platforms, and storage racks

These steel U channels for construction combine strength, flexibility, and cost efficiency, making them a popular choice for global projects.

U Channel Steel Pricing Considerations

The price of U Channel Steel depends on several factors:

• Material type: Mild Steel is most economical, Stainless and GI are higher-priced due to added corrosion resistance.
• Dimension and thickness: Larger and thicker steel U channel sizes require more material and processing.
• Surface treatment: Hot-dip galvanizing or polishing increases cost.
• Order volume: Wholesale and bulk orders can significantly reduce unit cost.

For project-based pricing of U Channel Steel, buyers usually request quotations based on size, material, and order volume rather than fixed price lists.

Tips for Choosing the Right U Channel Steel

Once the U Channel Steel size and section profile are defined, buyers and project managers should consider the following practical factors before procurement:

1. Project requirements: Determine load-bearing capacity, corrosion resistance, and intended environment
2. Size compatibility: Verify U Channel sizes in mm match structural drawings
3. Material choice: Mild steel for cost efficiency, carbon steel for strength, stainless or GI for outdoor durability
4. Supplier reliability: Ensure consistent supply, standard compliance, and timely delivery
5. Application-specific requirements: Solar panels, protective frames, or industrial platforms may require specific dimensions or coatings

Summary & Where to Buy

U Channel Steel is essential for construction projects and distribution businesses. By choosing the right material, size, and supplier, you can ensure project efficiency, structural safety, and profitability.

👉Explore our full selection of U Channel Steel products: U Channel Steel Products

📩 For detailed specifications or a custom quotation, please contact our team.

FAQ About U Channel Steel

• Q1: What are the standard U channel steel sizes in mm?
  A1: Standard U channel steel sizes are defined by section height, flange width, and thickness, and are commonly specified in millimeters. Typical sizes range from small sections for light frameworks to larger sections used in structural supports. Actual size availability depends on the applied standard (EN, ASTM, JIS, or GB) and material type.
• Q2: How do engineers select U channel steel sizes for construction projects?
  A2: U channel steel size selection is based on load-bearing requirements, span length, service environment, and compliance with design standards. Engineers usually refer to structural drawings, section properties, and weight charts to ensure the selected U channel meets both strength and safety requirements.
• Q3: Can U channel steel be used for outdoor applications?
  A3: Yes. For outdoor or corrosive environments, galvanized (GI) U channels or stainless steel U channels are commonly used. These materials provide improved corrosion resistance compared to standard mild steel, making them suitable for roofing structures, solar mounting systems, and exposed frameworks.
• Q4: How do mechanical properties affect U channel steel selection?
  A4: Mechanical properties such as yield strength and tensile strength determine the load capacity of a U channel, while elongation reflects its ductility during fabrication or under stress. These properties are critical for ensuring structural safety and are typically evaluated alongside section dimensions during material selection.
• Q5: Which standards are commonly used for U channel steel?
  A5: U channel steel can be manufactured according to standards such as GB/T (China), ASTM (USA), and EN (Europe). The selected standard usually depends on project location, engineering specifications, and regulatory requirements.
• Q6: Which U channel steel is suitable for bulk distribution?
  A6: Mild steel U channels are commonly used for bulk distribution due to their cost efficiency, wide size availability, and ease of processing. They are suitable for general construction, fabrication, and resale to multiple end-use sectors.
