Steel Plate Thickness Guide: From 1/4 Inch to 12 Inch

Introduction

Choosing the right plate thickness is critical in construction, manufacturing, and heavy industry. Selecting a plate that is too thin can lead to structural failures, while an unnecessarily thick plate increases costs and complicates processing.

This guide provides a complete overview of common steel plate thicknesses — from 1/4 inch steel plate to 12 inch steel plate — including typical grades, weight references, inch–millimeter conversions, and application examples for different industries.

Standard Steel Plate Thicknesses (1/4 Inch – 12 Inch)

Below is a quick reference steel plate thickness chart showing typical thicknesses, international material standards, and common applications.

Thickness	Typical Materials	Approximate Applications
1/4″	ASTM A36 (General Structure), Q235B	Base plates, light structural parts
1/2″	ASTM A36, ASTM A572, Q345B	Bridges, medium-strength structural elements
1″	ASTM A516 (Pressure Vessels), ASTM A36	Heavy machinery, shipbuilding, energy projects
2″	ASTM A516 Gr70, ASTM A572, API 5L	Oil & gas pipelines, offshore platforms, pressure vessels
4″	ASTM A514, Q460 High-Strength	Crane base plates, hydropower projects, high-rise cores
6″	ASTM A514, ASTM A709	Nuclear power plant structures, bridge piers
8″	ASTM A517, High-Strength Alloy Plate	Large-scale turbines, dam reinforcement
10″	Custom-Made (A514 / Alloy Grades)	Specialized engineering, heavy mold bases
12″	Custom Rolling (Alloy Steel)	Industrial presses, offshore deep-water structures

In addition to the above, intermediate sizes such as 3/8″, 5/8″, 3/4″, 1.5″, and 3″ steel plate are widely supplied for customized engineering requirements. Standard steel plate thicknesses vary slightly by grade and rolling mill, and custom rolling is available upon request.

👉 Contact us today for accurate thickness recommendations and a competitive steel plate quotation.

Steel Plate Thickness Conversion (Inch ↔ Millimeter)

Many engineers use both imperial and metric systems. The following steel plate thickness in mm chart provides quick reference values:

Inch	Millimeter (mm)
1/8″	3.18 mm
1/4″	6.35 mm
3/8″	9.53 mm
1/2″	12.7 mm
3/4″	19.05 mm
1″	25.4 mm
1.5″	38.1 mm
2″	50.8 mm
4″	101.6 mm
6″	152.4 mm
8″	203.2 mm
10″	254 mm
12″	304.8 mm

This conversion helps when comparing plate thickness in inches with metric specifications in project drawings or international standards.

If you are selecting between common thicknesses like 10mm, 50mm, or 100mm, it is important to evaluate the total cost impact. See our detailed steel plate cost by thickness comparison to avoid over-specification.

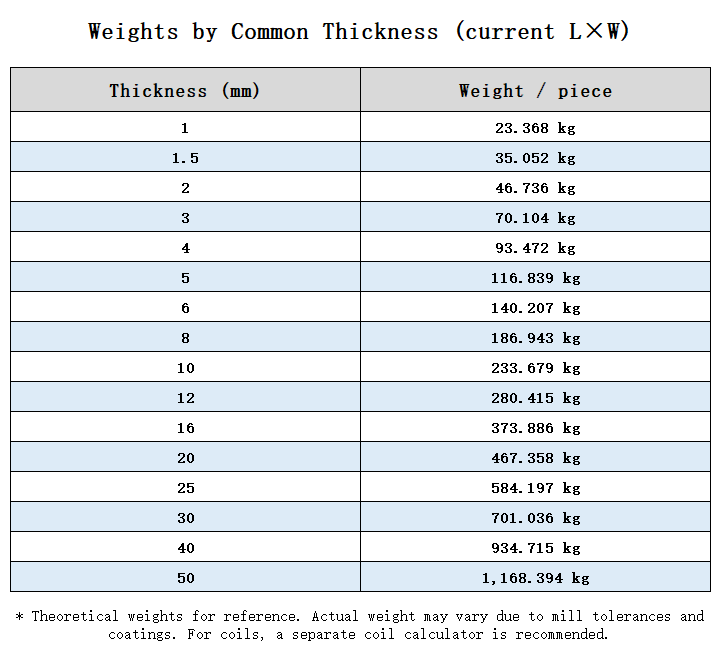

Understanding Plate Thickness and Weight

The weight of a steel plate is calculated using a simple formula (Weight values are calculated based on the density of steel ≈ 7,850 kg/m³):

Weight (kg) = Length (m) × Width (m) × Thickness (m) × Density (kg/m³).

Example:

A 1 inch steel plate (25.4 mm) measuring 4 ft × 8 ft (1.22 m × 2.44 m) has a total weight of about 610 kg (1340 lbs).

💡 Need precise weight for your project? Use our Steel Plate Weight Calculator to quickly determine the weight per square foot for any plate thickness.

Applications by Thickness

• Light to Medium Duty (1/4″ – 1/2″)
  Common in building structures, base plates, and general fabrication. A quarter inch steel plate is often used in floor plates, while a half inch steel plate is suitable for load-bearing beams and frames.
• Standard Industrial Use (1″ – 2″)
  Widely applied in shipbuilding, energy, and oil & gas. A 1 inch steel plate is frequently used in storage tanks and bridges, while 2 inch steel plate offers excellent load-bearing performance for pressure vessels and offshore platforms.

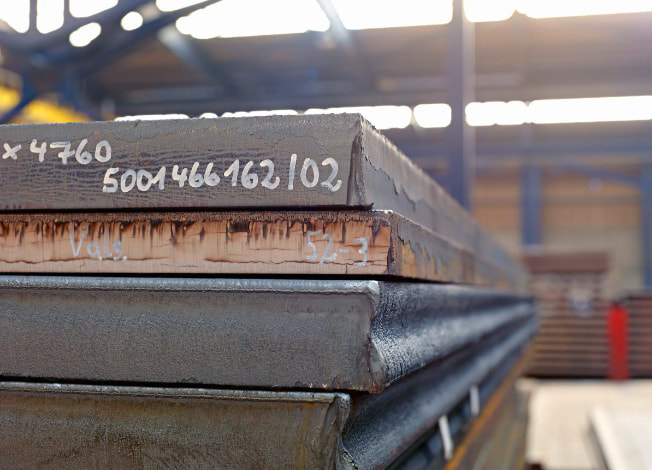

• Heavy-Duty and Extra Thick (4″ – 12″)
  Thick plates are used in critical, high-stress environments. A 4 inch thick steel plate is common in hydropower stations, cranes, and heavy support bases. 8 inch, 10 inch, and 12 inch steel plate belong to the extra thick steel plate category—typically custom-rolled for offshore structures, press machines, and industrial molds.

Key Factors When Selecting Plate Thickness

1. Material Standard
   Your material choice directly affects weldability, toughness, and cost.
   • For General Structures: ASTM A36 (Economical, easy to weld)
   • For Pressure Equipment: ASTM A516 (Good weldability & impact resistance)
   • For High-Strength Needs: ASTM A572 Gr. 50 or ASTM A514 (Allows thinner and lighter design)
   • For Weathering Resistance: ASTM A588 (Reduces maintenance in outdoor exposure)
2. Processing and Machining
   Thicker plates (over 2″) may require preheating before welding and specialized cutting tools.
3. Project Requirements
   Choosing between 1 inch and 2 inch steel plate thicknesses depends on design loads, weld joint design, and cost optimization.
4. Cost Considerations
   The price of a steel plate increases with thickness and grade.
   For instance, a 1 inch steel plate price can be 60–70% lower than a 2 inch plate of the same material due to weight and processing cost.

Get Expert Guidance on Steel Plate Thickness

Selecting the right steel plate thickness isn’t only about cost — it’s about performance and safety.
Whether you need a 1/4 inch plate for general fabrication or a 12 inch steel plate for heavy-duty infrastructure, our engineers can recommend the most suitable option.

👉 For up-to-date pricing, request a custom quotation from our sales team.

FAQs for Steel Plate Thickness

• Q1: What is the standard thickness of a steel plate?
  Standard steel plate thickness typically ranges from 1/4″ (6.35 mm) to 12″ (304.8 mm). Common intermediate sizes include 3/8″, 1/2″, 3/4″, 1″, 1.5″, 2″, 3″, 4″, 6″, 8″, and 10″.
• Q2: How much does a 1/4 inch steel plate weigh per square foot?
  A 1/4″ (0.25 inch) steel plate weighs approximately 10.2 lb per square foot. This calculation is based on standard carbon steel density of 490 lb/ft³ (7,850 kg/m³).
• Q3: How thick is 1 inch steel plate in mm?
  A 1 inch steel plate is exactly 25.4 millimeters (mm) thick.
  This conversion is based on the standard measurement: 1 inch = 25.4 mm.
