ASTM A709 Steel Grade Selection Guide: 50, 50W Weathering Steel & HPS 70W for Bridge Projects

🔹 Quick Grade Selection — ASTM A709

→ Standard bridge, cost-sensitive project → Grade 50
→ Exposed structure, unpainted finish → Grade 50W (weathering steel)
→ Long-span bridge or cold climate project → HPS 70W
→ Need rounds or angles for exposed members → Grade 50W rounds / corten angles

All grades available export-ready from China with Mill Test Report (MTR) and SGS inspection.

What Is ASTM A709 and Who Needs It

ASTM A709 is the structural steel specification for bridge construction in the United States, covering a range of carbon and high-strength low-alloy (HSLA) steels for critical load-bearing members.

If your project involves highway bridges, pedestrian crossings, railway overpasses, or similar infrastructure, your engineer or client specification is likely referencing one of three grades: Grade 50, Grade 50W, or HPS 70W.

Each grade serves a different structural and environmental purpose. This guide helps procurement managers and project teams understand the differences and make the right material decision before sourcing.

Key performance requirements addressed by ASTM A709 include:

• Structural strength for bridge loading conditions
• Notch toughness for fracture-critical members
• Atmospheric corrosion resistance for exposed structures
• Weldability and fabrication performance

Grade overview:

• ASTM A709 Grade 50 — Balanced strength and cost, commonly used in general bridge structures
• ASTM A709 Grade 50W — Enhanced atmospheric corrosion resistance for exposed bridge components
• ASTM A709 HPS 70W — Higher strength and improved toughness for long-span and high-performance bridges

ASTM A709 Grade Comparison: Which One Fits Your Project?

Before reviewing each grade in detail, the table below provides a side-by-side comparison to help narrow down your selection based on project requirements.

Factor	Grade 50	Grade 50W	HPS 70W
Yield Strength	345 MPa (50 ksi)	345 MPa (50 ksi)	485 MPa (70 ksi)
Tensile Strength	450–620 MPa	485–620 MPa	585–760 MPa
Corrosion Resistance	Standard	Self-patina (no paint)	Self-patina (no paint)
CVN Toughness	Required	Required	Required
Paint Required	Yes	No (if exposed)	No (if exposed)
Relative Cost	$	$$	$$$
Available Forms	Plate, heavy plate	Plate, rounds, angles	Plate, heavy plate
Best For	General bridges	Exposed structures	Long spans, cold climates

ASTM A709 Grade 50

• Minimum yield strength: 345 MPa (50 ksi)
• Tensile strength: 450–620 MPa (65–90 ksi)
• Applications: General bridge components, including girders and supports
• Key advantage: Cost-effective balance of strength and weldability

Grade 50 is the standard choice for conventional bridge construction where atmospheric corrosion resistance is not a primary requirement and protective coating systems will be applied.

ASTM A709 Grade 50W — Weathering Steel

• Minimum yield strength: 345 MPa (50 ksi)
• Key feature: Atmospheric corrosion resistance
• Alloying elements: Copper, chromium, and nickel
• Common uses: Exposed bridge structures where paint systems are not desirable

Grade 50W forms a stable protective oxide layer (patina) when exposed to suitable environments, reducing the need for painting and long-term maintenance. It is commonly specified for exposed bridge structures where lifecycle cost control is a priority.

ASTM A709 HPS 70W — High Performance Steel

• Minimum yield strength: 485 MPa (70 ksi)
• Tensile strength: 585–760 MPa
• Designed for: Enhanced toughness and improved weldability
• Typical applications: Long-span bridges and fracture-critical members

HPS 70W enables lighter structural designs while maintaining excellent fracture resistance, even in colder climates. It is typically specified when Grade 50W does not provide sufficient strength for the structural demand.

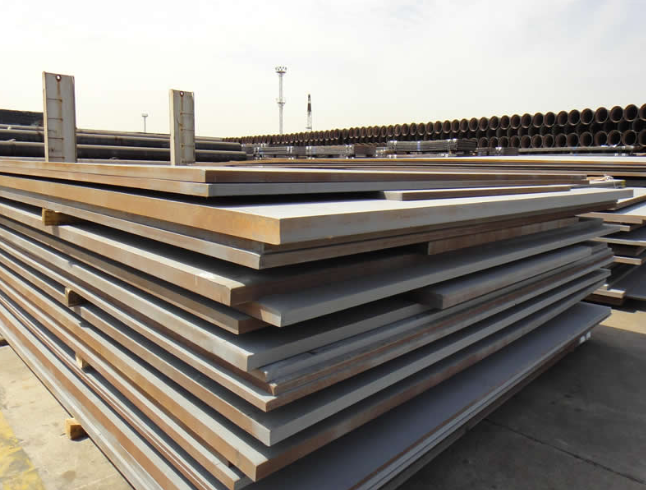

Product Forms: As-Rolled Plate, Heavy Plate, Rounds & Angles

ASTM A709 steel is available in several product forms depending on structural function and fabrication method:

• As-rolled ASTM A709 plates are often specified where post-heat treatment is not required and where cost efficiency is important. Typical applications include bridge girder webs and flange plates.
• Heavy plate sections are used for primary load-bearing members such as girders and stiffeners, where thickness and through-thickness properties are critical.
• Grade 50W weathering steel is also available in rounds and corten angles for exposed structural components, where both corrosion resistance and structural performance are required. These forms are commonly used in pedestrian bridge railings, exposed cross-frames, and decorative structural elements.

These forms reflect design and fabrication choices, not performance differences within the ASTM A709 specification itself. The grade selected determines corrosion resistance and strength; the product form is determined by the structural detail and fabrication requirement.

For detailed dimensions, thickness ranges, and available grades used in bridge fabrication, you can refer to our ASTM A709 steel plate product page.

When to Specify Grade 50W: Weathering Steel for Exposed Structures

ASTM A709 Grade 50W weathering steel is particularly suitable for unpainted, exposed bridge structures. Its protective patina develops naturally over time, minimizing further corrosion under appropriate environmental conditions.

Grade 50W is often specified for:

• Pedestrian and vehicular bridges in rural or low-pollution environments
• Mountainous or inland crossings with limited maintenance access
• Bridge components where paint application and recoating are not practical
• Architectural bridge designs where a natural weathered appearance is preferred

Important: Grade 50W performs best in environments with alternating wet and dry cycles. It is not recommended for constant water contact, buried conditions, or highly industrial or marine environments.

Grade 50W vs HPS 70W: Mechanical Performance Compared

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Charpy V-Notch Toughness
50W	345	485–620	≥ 18	Good at ambient temps
HPS 70W	485	585–760	≥ 19	Excellent at low temps

From a selection perspective:

• HPS 70W prioritizes strength and toughness for long-span applications
• Grade 50W emphasizes corrosion resistance and reduced maintenance cost

Environmental Considerations by Region

• Middle East / Hot-dry climate:
  Grade 50W performs well inland. Coastal projects should use coated Grade 50.
• Southeast Asia / Coastal-humid:
  High humidity may prevent stable patina. Prefer coated Grade 50 near marine areas.
• Russia / Extreme cold:
  HPS 70W preferred for low-temperature toughness.
• Europe / Temperate:
  Both 50W and HPS 70W are commonly used depending on structure.

ASTM A709 vs ASTM A588: Choosing the Right Weathering Steel Standard

Feature	A709 Grade 50W	ASTM A588
Designed for	Bridge construction	General structures
CVN toughness	Mandatory	Not required
Fracture-critical use	Covered	Not specified
Yield strength	345 MPa	345 MPa
Corrosion resistance	Similar	Similar
Bridge use	Correct spec	Not recommended

For any fracture-critical bridge member, always specify ASTM A709 — not A588.

Practical Grade Selection: A Decision Framework for Procurement Teams

Use Grade 50 when:

• Steel will be painted
• Cost-sensitive projects
• Standard bridge components

Use Grade 50W when:

• Exposed, unpainted structures
• Inland / temperate environments
• Lifecycle cost reduction is needed

Use HPS 70W when:

• Long-span bridges
• Cold climates
• High strength and toughness required

Sourcing ASTM A709 Steel Plate from China: What to Expect

Certifications:

• Mill Test Report (MTR)
• SGS inspection
• EN 10204 3.1 / 3.2

Available forms:

• Heavy plate: 8–150mm
• As-rolled plate
• 50W plates / rounds / corten angles
• HPS 70W (indent basis)

Lead time:

• 50 / 50W: 15–25 days
• 50W sections: 20–30 days
• HPS 70W: 25–40 days

Export ports: Tianjin, Qingdao, Shanghai

Contact CJM Steel for specifications, availability, and pricing

Frequently Asked Questions

• Q: Difference between Grade 50 and 50W?
  A: Same strength. 50W has corrosion resistance and can be used unpainted.
• Q: When to use HPS 70W?
  A: For higher strength, long spans, and cold environments.
• Q: A709 vs A588?
  A: A709 is required for bridge applications due to toughness requirements.
• Q: Chinese equivalent of 50W?
  A: Q355NH (GB/T 4171).
• Q: Are 50W rounds and angles available?
  A: Yes, available for export with standard packaging.
• Q: Can 50W be used in marine environments?
  A: Not recommended; use coated Grade 50 instead.
