Wear Plates for Mining Equipment: NM400, NM450 & NM500 Solutions

Mining and quarry environments expose equipment to extreme wear, impact, and abrasion. Whether you’re handling limestone, iron ore, or coal, your machinery is constantly under attack. That’s why wear plates for mining plays a critical role in extending equipment life, reducing downtime, and lowering maintenance costs.

This guide focuses on how abrasion resistant steel plates are applied in mining and quarry equipment, explaining where NM400, NM450, and NM500 wear plates are commonly used and how different wear conditions affect material selection.

Why Mining Equipment Needs Abrasion Resistant Steel

Heavy-duty equipment in mining operations faces several types of wear:

• Sliding abrasion
• Impact wear
• High-pressure contact

Standard carbon steel cannot withstand these conditions for long-term operation. Abrasion resistant steel plates for mining, especially NM-series wear plates, are engineered to provide higher hardness, strength, and durability under harsh working environments.

Common Wear Plate Applications in Mining and Quarrying

Different mining equipment components experience different abrasion patterns. Selecting the right wear plate grade helps optimize performance and service life.

Equipment Type	Common Wear Part	Recommended Steel Grade

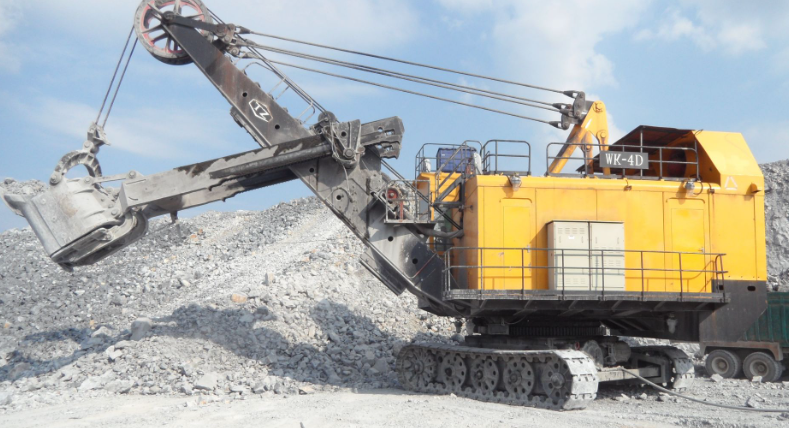

Excavators	Buckets, side cutters	NM400, NM450

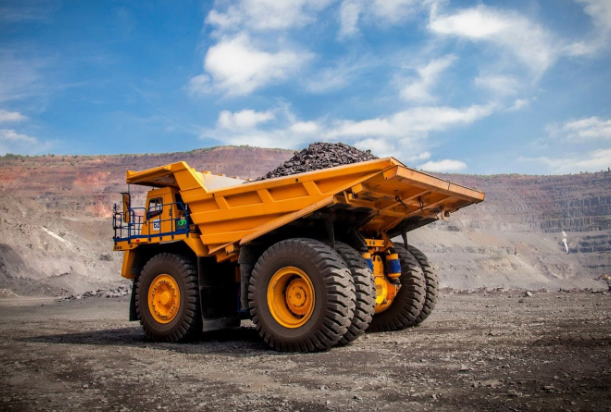

Dump trucks	Truck body liner, tailgate	NM450, NM500

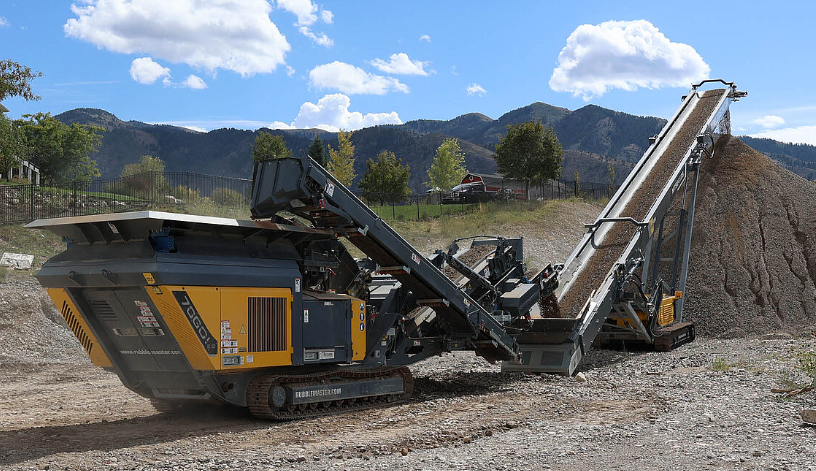

Crushers	Inner linings, breaker plates	NM500
Conveyors	Skirt boards, liners	NM400
Hoppers & chutes	Wall lining, base plates	NM400, NM500
Loaders	Cutting edges, blade liners	NM450, NM500

Each component faces unique abrasion and impact conditions, making correct grade selection essential for mining operations.

Applications in Iron Ore and Quarry Handling

In iron ore mining and quarry operations, components such as crushers, chutes, and dump truck bodies are subject to severe abrasion and repeated impact. Using properly selected wear plates for mining and quarry equipment helps prevent premature failure, reduce unplanned shutdowns, and improve operational efficiency.

NM-Series Wear Plates Used in Mining Equipment

NM400 Wear Plate Applications

NM400 wear plate offers a practical balance between hardness and toughness, making it suitable for moderate abrasion with intermittent impact. It is widely used in chutes, hoppers, conveyor liners, truck floors, and excavator buckets where reliable protection and easier processing are required.

NM450 Wear Plate Applications

NM450 steel plate delivers higher hardness than NM400, extending service life in tougher applications. It is commonly applied in loader buckets, dump truck beds, and quarry impact zones, where stronger mechanical resistance is required.

NM500 Wear Plate Applications

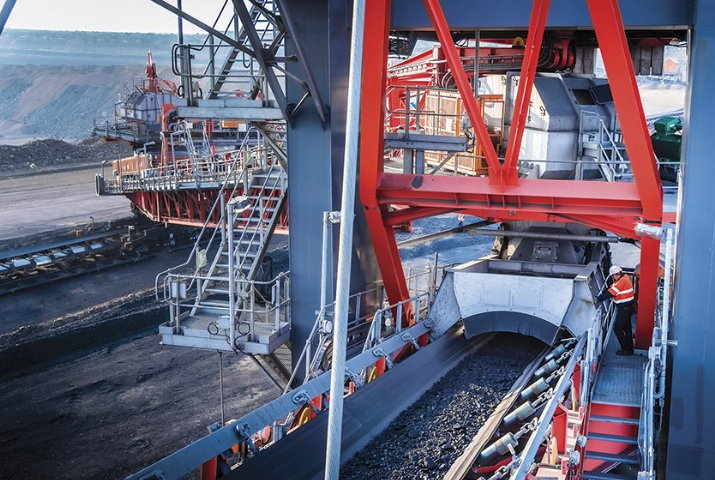

NM500 wear plate offers maximum hardness and wear resistance within the NM series. It is typically used in crusher liners, dump truck impact areas, coal chutes, and high-wear transfer points, where maintenance access is limited and downtime is costly.

Although NM500 has a higher initial material cost, it often reduces long-term operating expenses by significantly extending replacement cycles.

For even more demanding conditions, please refer to NM550 / NM600 steel plate solutions.

How to Choose the Right Wear Plate for Mining?

Wear Type	Suitable Grade	Notes
Moderate sliding wear with minor impact	NM400	General purpose, easy to weld and process
High sliding wear and impact	NM450	For stronger mechanical demands and longer life
Severe abrasion	NM500	For harshest conditions, higher initial investment, lower long-term cost

Correct grade selection ensures optimal performance and prevents over-specification or premature failure.

Key Features of Quality Wear Plates for Mining

A qualified abrasion resistant steel plate for mining should provide:

• High surface hardness (≥400 HBW)
• Stable toughness (to resist cracking)
• Good weldability & machinability
• Certified quality (mill test certificates, ISO, SGS)

At CJM Steel, we not only provide certified NM400/NM450/NM500 plates, but also serve as a trusted mining steel plate supplier for global buyers.

Choosing the right wear plates for mining equipment directly impacts productivity, safety, and operating costs. By matching NM400, NM450, or NM500 wear plates to specific wear conditions, mining and quarry operators can significantly improve equipment lifespan and reduce maintenance frequency.

If you are sourcing abrasion resistant steel plates for mining or quarry projects, CJM provides technical guidance, stable supply, and global delivery support tailored to real operating conditions.
