Diamond & Tread Pattern Plates for Industrial Flooring, Ramps, Decks, and Heavy Equipment Use

Product Description:

ASTM A36 checkered steel plates, also known as diamond plate or tread plate, are hot-rolled carbon steel plates with a raised pattern surface. Engineered under the American ASTM A36 standard, these plates offer excellent weldability, formability, and structural strength, making them ideal for flooring and safety applications in industrial, automotive, and marine environments.

---

What Is ASTM A36 Patterned Steel Plate?

A36 is one of the most widely used structural-grade carbon steels in the United States and worldwide. The checkered version incorporates a textured surface, most commonly in diamond or 5-bar tread patterns, which enhances friction and reduces the risk of slipping in wet or oily conditions.

Unlike Q235B or SS400, ASTM A36 checkered plates are certified to U.S. standards, making them especially suitable for North American, South American, and export clients who require mill-compliant materials.

---

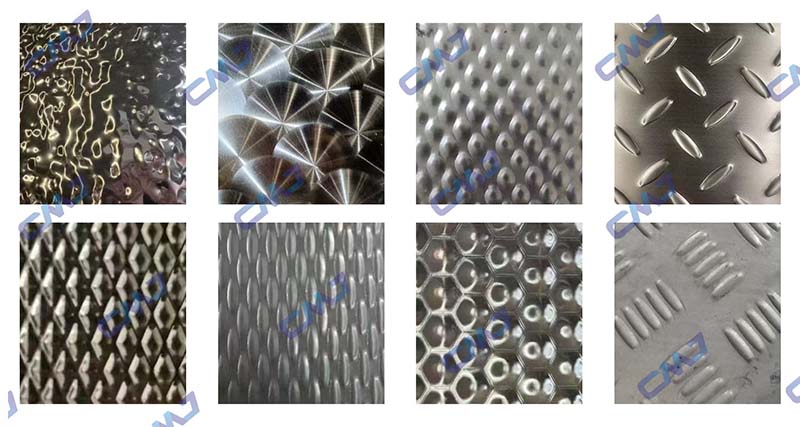

Popular Surface Patterns Available

• Diamond Plate (1-bar): The most common anti-slip surface
• Five Bar Tread Plate: Also known as quintet pattern
• Tear Drop Plate: Similar in slip resistance, often used interchangeably
• Customized Embossed Patterns: Available upon request

These patterned steel plates are ideal for structural floor reinforcement, vehicle running boards, construction stairs, and walkways.

---

Specifications and Standards

Item	Specification
Standard	ASTM A36
Pattern Types	Diamond / 5-Bar / Tear Drop
Thickness	2.0 – 12.0 mm
Width	1000 – 2000 mm
Length	2000 – 12000 mm
Surface Finish	Mill Finish, Galvanized, Oiled
Edge	Mill Edge / Slit Edge

---

Chemical Composition & Mechanical Properties

📌 Chemical Composition (%)

Element	Max Content (%)
Carbon (C)	≤ 0.26
Manganese (Mn)	0.60 – 0.90
Phosphorus (P)	≤ 0.04
Sulfur (S)	≤ 0.05
Copper (Cu)*	≥ 0.20 (if specified for atmospheric corrosion resistance)

📌 Mechanical Properties

Property	Typical Value
Yield Strength	≥ 250 MPa
Tensile Strength	400 – 550 MPa
Elongation (200 mm)	≥ 20%
Elongation (50 mm)	≥ 21%
Brinell Hardness	≤ 133 HBW

---

Key Advantages

• 📌 ASTM Certified: Meets A36 structural steel standard
• 📌 Enhanced Safety: Diamond/tread pattern provides excellent grip
• 📌 Strong & Durable: Suitable for heavy loads and wear
• 📌 Easy to Weld, Cut, and Shape
• 📌 Versatile Uses: From factory flooring to truck trailers

---

Common Applications

• Factory and warehouse flooring systems
• Stairs, ladders, and elevated platforms
• Trailer floors and ramps
• Ship and offshore deck surfacing
• Construction equipment panels

---

Customization & Supply Options

We support:

• 🔧 Cut-to-size and precision cutting
• 🌐 Export-standard packaging
• 🧪 100% full inspections before shipping
• ⚙️ CNC or laser-cut holes, notches, or trimming

---

Why Choose ASTM A36 for Flooring?

Compared to other steel grades:

• A36 offers superior compatibility with U.S. project specifications
• Higher ductility and weldability than S235JR or Q235B
• Perfect for retrofit flooring, platform overlays, and non-slip ramps

---

Package & Shipment:

• Type: Standard Seaworthy Packing
• Delivery time: 7-15 Days After We Get The Payment
• Size: Based On Orders
• Packaging Details: As Customer Requirement

---

📞 Request a Quote for ASTM A36 Checkered Plate Today

Email: [info@cjmstainlesssteel.com] | WhatsApp: [+8618191906640]

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
