Export-Ready, Customized Galvanized Checkered Coils for Flooring and Industrial Projects

Our hot-dip galvanized checkered steel coils combine durable zinc protection with embossed anti-slip patterns such as diamond, 5-bar, and tear drop. As a reliable checkered steel coils supplier, CJM provides export-ready customized checkered steel coils for trailers, flooring, walkways, platforms, and mechanical fabrication.

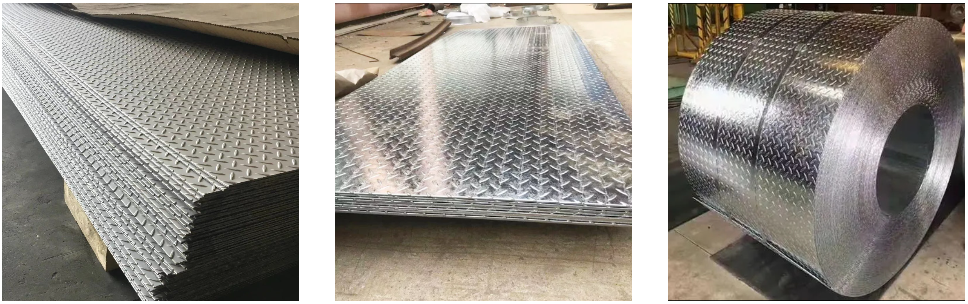

We supply both plates and coils, supporting customers who need flat sheets for flooring or continuous coils for further processing. As a professional checkered steel coils company, CJM delivers export-ready products with strict quality control and customizable specifications for various regional standards.

Galvanized Checkered Steel Coils Overview

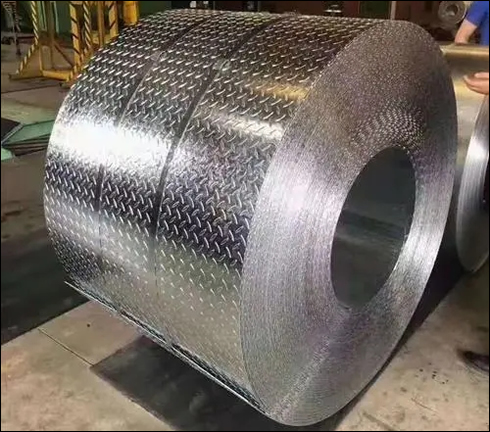

Our galvanized checkered steel coils are produced by hot-dip galvanizing a carbon-steel substrate, followed by embossing raised patterns to increase slip resistance. The zinc coating protects against corrosion, while the patterned surface improves traction in industrial and construction environments.

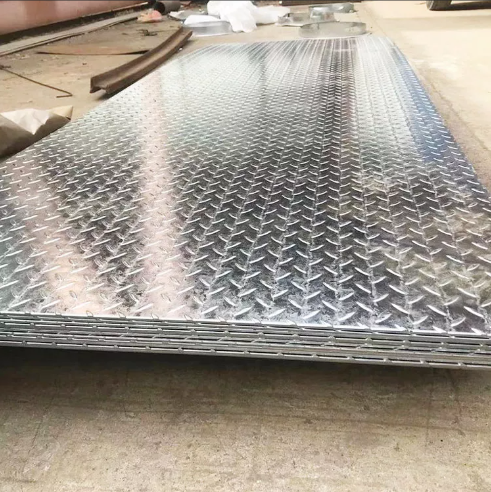

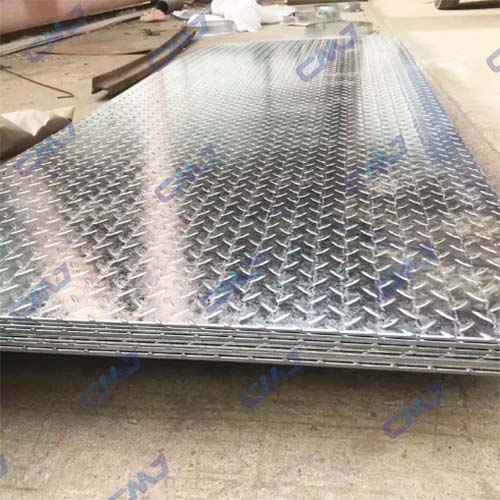

This page focuses on checkered steel coils, with flat plates also available on request for cut-to-size orders.

Key Advantages of Checkered Steel Coils

• Corrosion Resistance – Hot-dip zinc layer protects against moisture and rust.
• Slip-Resistant Surface – Diamond, tear-drop, or 5-bar patterns provide strong grip.
• Flexible Processing – Coils support continuous stamping, slitting, and fabrication.
• Cost-Efficient for OEM Buyers – Ideal for trailer floor manufacturers, stair tread producers, and metal fabrication plants.
• Customizable Supply – Width, thickness, zinc coating, and coil weight can be fully customized.

Surface Patterns of Checkered Steel Coils

We provide various embossed patterns to meet different anti-slip and aesthetic requirements:

Pattern Name	Description	Common Uses

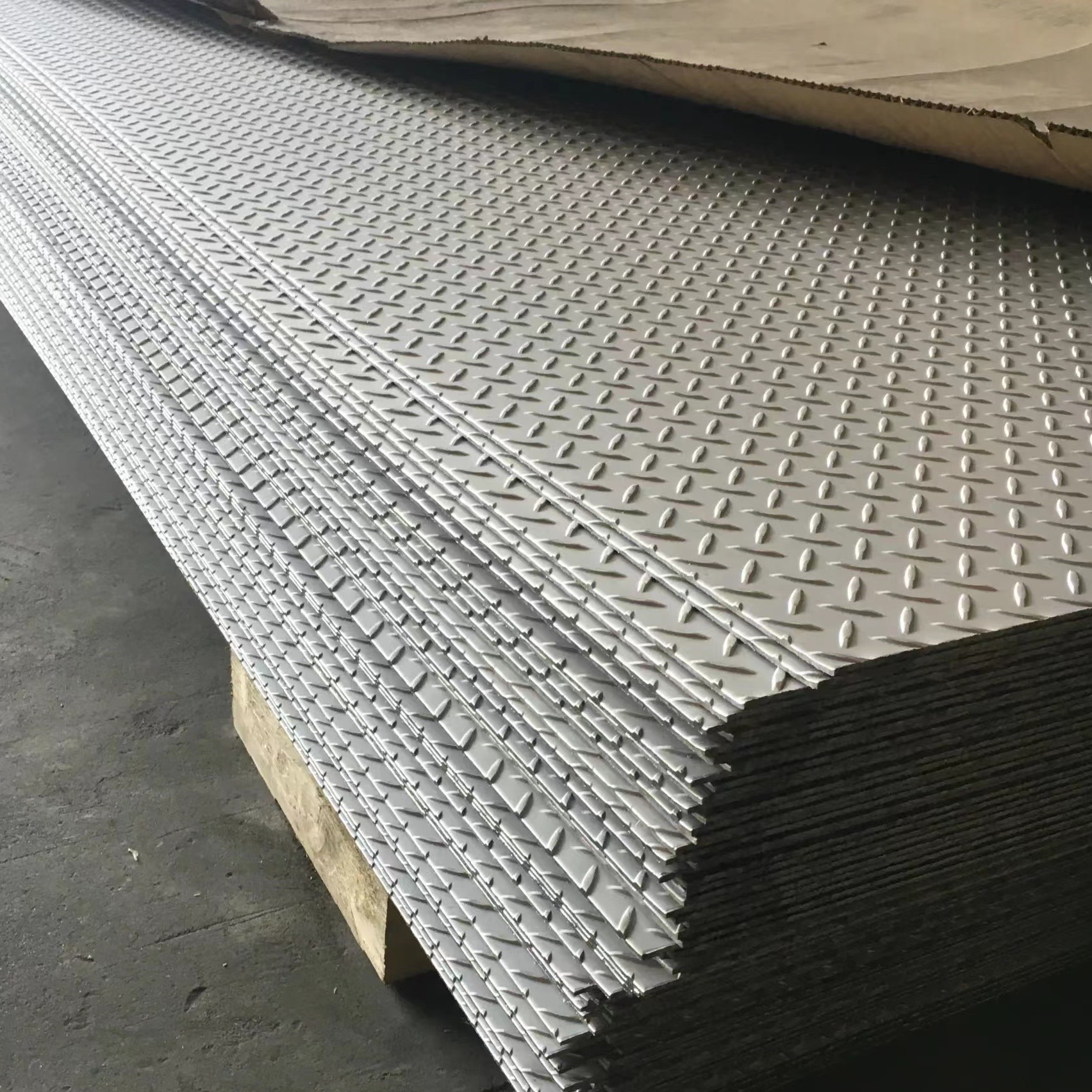

Diamond Plate	One-directional raised diamond shape	Truck beds, trailers, loading docks
Tear Drop / Lentil	Raised droplet shape with good grip	Factory floors, staircases
5-Bar Pattern	Five raised bars in parallel	Walkways, catwalks, vehicle ramps
Durbar Plate	Non-slip pattern common in UK	Industrial & marine flooring

For detailed comparison of pattern types and weights, see our full guide: Checkered Steel Plate Sizes, Patterns & Applications Guide

Specifications of Galvanized Checkered Steel Coils

Parameter	Specification Range
Base Material	Carbon Steel: Q195, Q235, Q235B, Q255B, Q275, SS400, ASTM A36, S235JR, S275JR
Steel Type	Hot Rolled, Pickled, Descaled before galvanizing
Zinc Coating (Z)	Z40 – Z275 (40g/m² – 275g/m²), both sides total
Thickness	1.8–12 mm (up to 14 mm on request)
Width (plate)	1000mm – 2000mm
Length (plate)	2000mm – 6000mm or customized
Coil Width	1000mm – 1500mm
Pattern Height	0.8mm – 1.2mm typical
Standard	ASTM A653, EN 10346, GB/T 2518, JIS G3302

• Special OEM supply available for customized checkered steel coils in high-volume orders.
• Embossing available on one side or two sides depending on application.

Related product:

• Q235B / Q345B Carbon Steel Checkered Plate for Flooring, Trailers & Construction
• ASTM A283 / A572 Diamond & Tread Checkered Steel Plate

Applications of Galvanised Checkered Plates & Coils

Application	Product	Recommended Specs
Trailer Flooring	Coil	2–4 mm, diamond / 5-bar, Z100–Z180
Truck Bed Panels	Coil	2–4 mm, tear-drop, Z100+
Walkways & Ramps	Coil / Plate	3–6 mm, 5-bar, Z200–Z275
Industrial Stair Treads	Coil	2–4 mm, tear-drop, Z140–Z275
Machinery Fabrication	Coil	2–3 mm, diamond

*Zinc layer thickness should be chosen based on humidity, salt exposure, and indoor/outdoor placement.

Read our blog if you need more information about A36 checkered steel plate applications: ASTM A36 Checkered Steel Plate for Flooring & Structural Use

Processing & Customization Options

• Coil slitting & cut-to-length
• Embossing: one-sided or double-sided
• Custom zinc coating
• Edge trimming & deburring
• OEM supply for trailer builders, stair tread factories, and distributors

Packaging & Delivery

Item	Details
Coil Packaging	Eye-to-sky or eye-to-wall with steel + kraft wrapping
Plate Packaging	Steel pallet + waterproof covering
Shipping Terms	FOB / CFR / CIF
Lead Time	7–20 days
Ports	Tianjin / Qingdao / Shanghai
Samples	Available upon request

Why Choose CJM as Your Checkered Steel Coils Supplier

• Export-ready galvanized checkered steel coils with consistent zinc coating
• Long-term cooperation with qualified mills
• Full compliance with ASTM, EN, GB standards
• Technical support for coil processing
• Fast delivery and responsive service for overseas buyers

Galvanized Checkered Coil Price

Price depends on:

• Steel grade
• Coil thickness
• Zinc coating (Z)
• Pattern type
• Order quantity & destination

For an accurate quote, contact us with your specifications (grade, size, pattern, zinc coating, port).

Email: info@cjmstainlesssteel.com

WhatsApp: +8618191906640

FAQs

• Q1: What’s the difference between checkered steel coils and plain galvanized coils?
  A: Checkered coils have embossed patterns for improved grip; plain coils have smooth surfaces used for general structural or cladding purposes.
• Q2: Can you produce customized checkered steel coils?
  A: Yes, thickness, width, coil weight, embossing pattern, and zinc coating can all be customized.
• Q3: Do you supply both coils and plates?
  A: Yes. This page focuses on coils; flat plates are available for cut-to-size orders.
• Q4: What zinc coating is recommended for outdoor use?
  A: Z200–Z275 for high-humidity or marine environments.
• Q5: What is the minimum order quantity for galvanized checker coils?
  A: MOQ depends on thickness and zinc coating. Contact us for detailed options.
• Q6: What is the difference between diamond and 5-bar patterns?
  A: Diamond is cost-effective for vehicles, while 5-bar offers stronger grip for industrial flooring.

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
