What’s the Best Steel Plate Size for Trailers, Construction, Machinery, or Repairs?

Steel plates are a fundamental material in construction, heavy equipment manufacturing, trailers, and repair projects. Choosing the right steel plate size is essential for achieving the desired strength, durability, and cost efficiency. This guide covers typical steel plate sizes, thickness options, and tips for selecting the best plate for your application.

In this guide, we’ll break down the most common steel plate sizes used in trailers, machinery, and repair jobs. You’ll learn the advantages of different thicknesses, how to match them to your specific application, and where to find these plates at competitive prices.

Common Steel Plate Sizes and Thickness

Steel plates come in a variety of dimensions to meet different engineering and fabrication needs. The most typical steel plate sizes include:

• 4’ × 8’ (1219 × 2438 mm)
• 5’ × 10’ (1524 × 3048 mm)
• 6’ × 12’ (1829 × 3658 mm)

Common thicknesses include 3/16″, 1/4″, 3/8″, and 1/2″. For lighter weight projects, 1/8″ plates may be used, while 3/16 vs 1/4 steel plate is a common comparison for medium-duty applications.

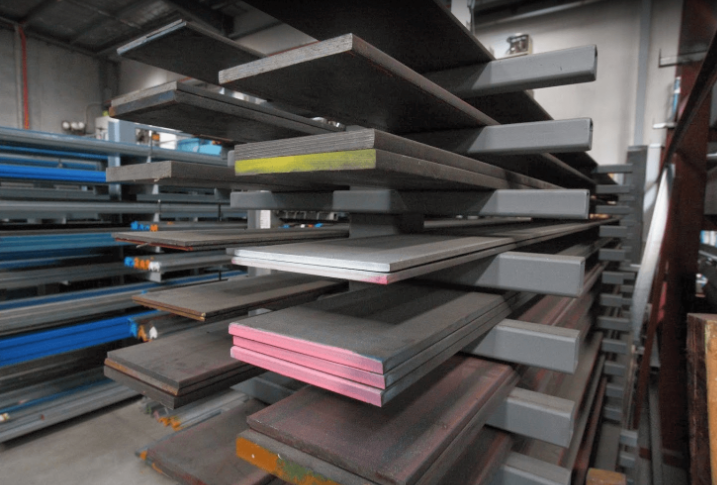

Common Steel Plate Thickness vs. Weight Comparison

Nominal Thickness (inches)	Weight (lb/ft²)
3/16	7.65
1/4	10.2
5/16	12.8
3/8	15.3
7/16	17.9
1/2	20.4
9/16	22.9
5/8	25.5
11/16	28.1
3/4	30.6
13/16	33.2
7/8	35.7
1	40.8

Steel Plate Selection for Different Applications

1. Steel Plate Sizes for Trailers

Trailer builders frequently use structural steel plates with high yield strength. The plate size is chosen based on trailer bed dimensions and load requirements.

Common Choices for Trailer Decks and Ramps:

• 1/4 inch steel plate 4×8 – ideal for utility trailers and mid-weight flatbeds
• 3/16 metal plate – commonly used in lightweight trailers and ramp surfaces
• 1/2 inch steel plate – used for heavy-duty trailers and loading ramps exposed to forklift or tracked machinery

These plates are typically welded onto a frame or crossmembers. For general-purpose trailers, 1/4 steel plate offers a solid balance between rigidity and manageability. For lighter weight or budget-sensitive builds, 3/16 sheet metal is often sufficient and easier to handle.

2. Plate Sizes for Machinery Fabrication

Machinery requires stable bases, mounting platforms, and sometimes custom-shaped structural plates. These must handle static loads, vibration, and, in many cases, long-term outdoor exposure. Construction equipment steel plates are often thicker (1/4″ and above) to withstand heavy loads and impacts. They are used for bucket liners, excavator repairs, and structural reinforcements.

Recommended Sizes:

• 3/8 steel plate 4×8 – commonly used in machine frames, lifting brackets, and support legs
• 1/2 inch steel plate – often chosen for heavy equipment bases or press structures
• 1/4 inch plate steel – used for outer frames, equipment covers, and reinforcement brackets

Fabricators appreciate the dimensional consistency of 4’x8′ steel plates, as they fit most plasma tables and cutting layouts. The 1/2 steel plate is preferred when stiffness and minimal deflection are priorities, especially in baseplates or footings. Check out our machinery steel plates designed for durable equipment support.

3. Steel Plate Sizes for Construction and Structural Applications

In the construction industry, steel plates play a critical role in building stability and reinforcement. They are used for base plates, embedded plates, temporary access paths, shoring supports, and more.

Base Plates and Embedded Plates:

• 1/2 inch steel plate 4×8 and 1/4 inch plate steel are frequently used as column base plates in steel-framed buildings.
• Plates are often drilled or slotted to accommodate anchor bolts and welded to columns or beams.
• Sizes such as 16 x 16 steel plate, 25 in steel plate, and custom cuts are common for column footings and embedded elements in concrete.

Reinforcement and Repair:

• 3/16 sheet metal and 1/4 inch steel plate are ideal for reinforcing damaged beams, floors, or connections.
• These sizes provide enough strength without significantly increasing structure weight.

Walkways, Stair Treads, and Floor Protection:

• 1/8 inch steel plate or 1/4 steel plate 4×8 may be used in floor overlay or protective plating in high-traffic construction zones.
• For temporary roadways or heavy machinery passage, 1/2 inch steel plate is often used for ground coverage.

Construction engineers and site contractors favor standard sizes like 4×8 steel sheet because they simplify design, procurement, and installation. Visit our structural steel plates for construction page for more options.

4. Steel Plate Sizes for Repairs

Whether you’re patching a rusted trailer floor or reinforcing a damaged structural beam, pre-cut steel plates in common thicknesses can dramatically simplify the job.

Commonly Used Sizes in Repair Work:

• 1/8 inch steel plate – ideal for light reinforcement, patching equipment enclosures, or covering small holes
• 3/16 sheet metal – versatile and weldable, good for general repairs
• 1/4 plate steel – strong enough for most structural repairs or weld-on reinforcement plates
• 1/2 inch thick steel plate – best for rebuilding load-bearing areas or high-impact repair zones

In repair scenarios, it’s essential to match or exceed the original steel plate thickness. 3/16 steel plate is especially popular for patching dump beds, reinforcing backhoe arms, or strengthening cracked components.

Overview of Steel Plate Thicknesses and Their Uses

Thickness	Typical Application
1/8 inch steel plate	Light repairs, ducting, protective covers
3/16 metal plate	Trailer ramps, floor repairs, small brackets
1/4 inch steel plate	Trailer decks, equipment reinforcement, base plates
3/8 steel plate	Machinery frames, heavy brackets, structural supports
1/2 inch steel plate	Equipment base plates, road plates, foundation plates
3/4 steel plate	Specialized heavy-load applications

Why the 4×8 Steel Plate is an Industry Standard

Most steel suppliers stock 4×8 steel sheets as a default size. These dimensions offer:

• Efficient use of material with minimal offcuts
• Compatibility with standard transport pallets
• Ease of nesting for plasma or laser cutting

Frequently used options include:

• 1/8 steel plate 4×8 – lightweight and easier to work with
• 3/16 steel plate 4×8 – great for floor patching and mid-load uses
• 1/4 inch steel plate 4×8 – one of the most widely used sizes in trailer fabrication and building foundation work
• 1/2 inch steel plate 4×8 – for structural jobs needing rigidity and weight resistance

If you need to cover a defined area without custom cutting, 4’x8′ metal sheets provide fast solutions and predictable pricing.

Custom Sizes and Fabrication Flexibility

While 4×8 steel plates are the most common, CJM also supply custom cuts like:

• 16 x 16 steel plate for small brackets or machine bases
• 2 plate steel for extreme duty applications
• 3/16 sheet metal 4×8 for repair jobs or ramp surface patches

All plates can be supplied in raw, pickled, or shot-blasted finish as needed. We also offer cutting, beveling, and edge preparation on request.

Conclusion: Match Plate Size to Application, Not Guesswork

There is no “one-size-fits-all” steel plate for every trailer, machine, repair, or building structure. The best choice depends on your expected loads, fabrication method, and desired longevity.

To summarize:

• Choose 1/4 inch steel plate 4×8 for most trailer builds and base plates
• Use 3/16 metal plate for lighter repairs and patching
• Opt for 1/2 inch steel plate in heavy machinery, road coverage, or construction foundations
• Start with 1/8 inch steel sheet when weight-saving is crucial
