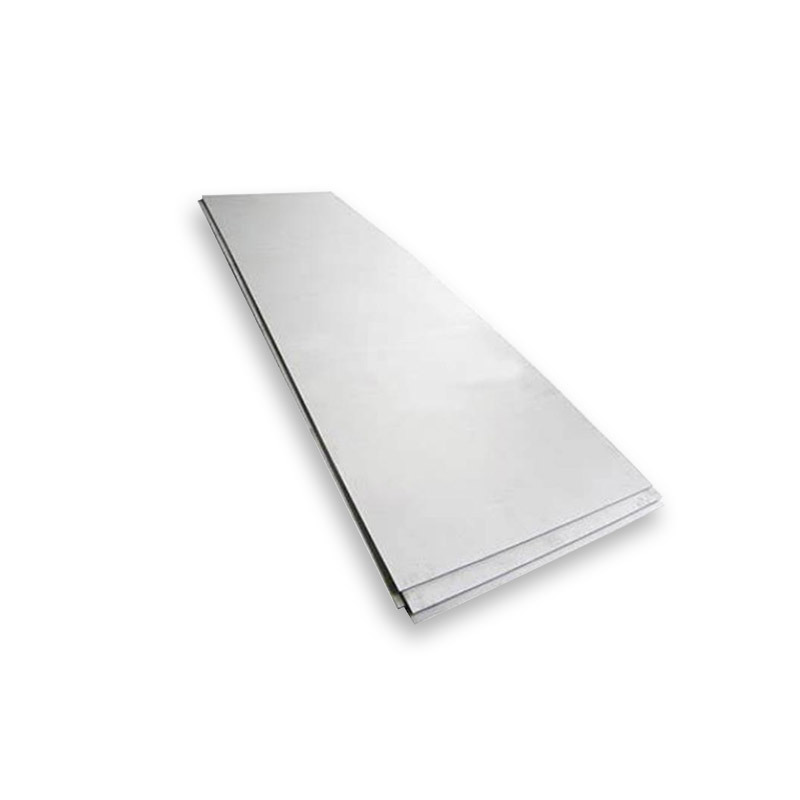

Hastelloy X Plate

Hastelloy X Plate Description

Hastelloy X plate has excellent corrosion resistance and can be used for a long time in various corrosive environments. This is because a large number of alloying elements are added to the alloy, such as nickel, chromium, molybdenum, etc. These elements form a dense oxide film on the surface of the alloy, which can effectively resist the erosion of various chemical substances. Hastelloy X plate has excellent high-temperature strength and can maintain high strength and hardness in high-temperature environments. This is because the alloying elements in the alloy can form strengthening molybdenum, which improves the tensile strength and yield strength of the alloy. Hastelloy X has good processing properties and can be used for casting, forging, rolling and other processing processes. During the processing process, the fluidity and plasticity of the alloy are relatively good.

Product Parameters

Product Name	Hastelloy X Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Chemical Composition

C	Si	P	S	Cr	Mn	Fe	Co	Ni	Mo	W
0.05 – 0.15	1.0 max	0.04	0.03	20.5 – 23.0	1.0 max	17.0 – 20.0	0.5 – 2.5	Remainder	8.0 – 10.0	0.2 – 1.0

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
95	35	35

Physical Performance

	Units	Temperature in°C
Density	8.22 g/cm³	22°C
Specific Heat	0.116 Kcal/kg.	Room
Melting Range	1260-1355°C	–
Modulus of Elasticity	205 KN/mm²	Room
Electrical Resistivity	118.3 µΩ.cm	22°
Coefficient of Expansion	13.9 µm/m °C	26 – 93°
Thermal Conductivity	9.1 w/m-° K	21°

Scope of Application

Hastelloy X is used in gas turbines, petrochemicals, industrial furnaces, heat treatment equipment, nuclear engineering, jet engine combustion chambers, cabin heaters, turbine exhaust components, etc.

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
