Monel 400 Plate
- OriginChina
- Delivery Time≥7 days
- DemandCustomizable
- StandardASTM, AISI, JIS, GB, DIN, EN
- MOQ 1 Ton
- Mob: +8618191906640
- Email: info@cjmstainlesssteel.com
Product Description
Stock Display
Inspection and Packaging

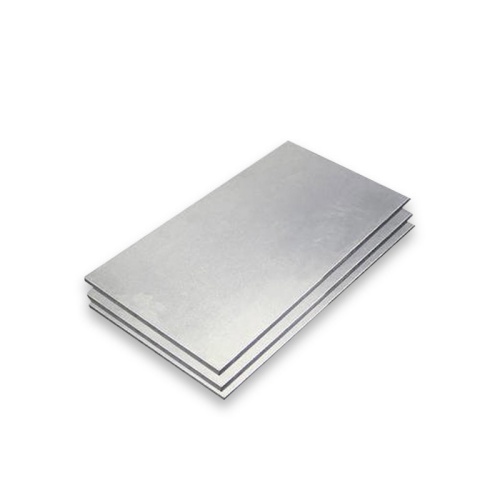

Monel 400 Plate Description
Monel 400 is a corrosion-resistant alloy with the largest dosage, the most wide range of uses, and excellent comprehensive properties. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, and also has excellent corrosion resistance against hot concentrated alkali liquid. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking and has good cutting performance. Monel 400 plate is widely used in many corrosive applications, particularly in the marine and chemical industries. Monel 400 can be easily machined through conventional machining operations. It is a relatively soft material suitable for thermoforming into almost any shape.
Product Parameters
| Product Name | Monel 400 Plate |
| Thickness | 0.3mm-200mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
| Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Certificate | ISO, SGS, BV |
| Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition
| Nickel, minA | Copper | lron, max | Manganese, max | Carbon, max | Silicon, max | Sulfur, max |
| 63.0% | 28.0% – 34.0% | 2.5% | 2.0% | 0.3% | 0.5% | 0.024% |
Mechanical Properties
| Condition (Temper) | Tensile Strength, min, psi (MPa) | Yield StrengthA(0.2 % offset), min, psi (MPa) | Elongationin 2 in. or50 mm, or4D, min,% | Rockwell Hardness(B Scale)b,c |
| Hot-Rolled Plate | ||||
| Annealed | 70000 (485) | 28000 (195) | 35 | – |
| As-RolledD,E | 75000 (515) | 40000 (275) | 25 | – |
| Hot-Rolled Sheet | ||||
| Annealed | 70000 (485) | 28000 (195) | 35 | – |
| Cold-Rolled Sheet | ||||
| Annealed | 70000 – 85000 (485 – 585) | 28000 (195) | 35 | – |
| Quarter-Hard | – | – | – | 73 – 83 |
| Half-Hard | – | – | – | 82 – 90 |
| Hard | 100000 (690) | 90000 (620) | 2 | – |
| Cold-Rolled Strip | ||||
| Annealed | 70000 – 85000 (485 – 585)F | 28000 (195) | 35F | – |
| Skin Hard | – | – | – | 68 – 73 |
| Quarter-Hard | – | – | – | 73 – 83 |
| Half-Hard | – | – | – | 82 – 90 |
| Three-Quarter-Hard | – | – | – | 89 – 94 |
| Hard | 100000 (690)F | 90000 (620)F | 2F | – |
| Spring Temper | – | – | – | 98 min |
Physical Performance
| Physical Performance | Units | Temperature in°C |
| Density | 8.14 g/cm³ | Room |
| Specific Heat | 0.105 Kcal/kg.C | Room |
| Melting Range | 1370-1400°C | – |
| Modulus of Elasticity | 196 KN/mm² | 20° |
| Electrical Resistivity | 113 µΩ.cm | 25° |
| Coefficient of Expansion | 14.1 µm/m °C | 25 – 100° |
| Thermal Conductivity | 11.1 w/m-° K | 25° |
Scope of Application
Used in marine engineering, chemical and hydrocarbon processing equipment, gasoline tanks and fresh water tanks, crude oil distillers, degassing heaters, boiler feed water heaters and other heat exchangers, valves, pumps, shafts, accessories and fasteners, Industrial heat exchangers, chlorinated solvents, crude oil distillation columns, etc., chemical processing, pollution control, pulp and paper production; industrial and municipal waste treatment and acid natural gas recovery.
