Want the best price per ton for marine steel plates?

🔹 Product Description:

At CJM Steel, we provide EH32, EH36, and EH40 shipbuilding steel plates that are widely used in the construction of hulls, decks, offshore platforms, and other marine structures requiring high tensile strength and resistance to extreme conditions.

All our plates comply with international classification society standards such as ABS, LR, DNV, BV, and CCS, and are produced according to ASTM A131 specifications.

---

🔹 What is EH-Series Shipbuilding Steel?

The EH-series, including EH32, EH36, and EH40, is a group of high-strength shipbuilding steel plates designed for marine and offshore structural applications. These plates offer excellent weldability, impact resistance, and yield strength, making them ideal for heavy-duty ship construction in cold and deep-sea environments.

Compared to conventional mild steel grades like A or B, the EH grades provide significantly better mechanical performance, especially under pressure and harsh weather conditions.

---

🔹 Key Features of EH32 / EH36 / EH40 Steel Plates

• High Yield Strength: Ranges from 315 MPa (EH32) to 390 MPa (EH40)
• Excellent Toughness at Low Temperatures
• Certified by Major Classification Societies
• Good Weldability and Formability
• Custom Sizes and Surface Treatments Available

---

🔹 Typical Applications

Our EH-series marine grade steel plates are widely used in:

• Ship hulls and superstructures
• Offshore drilling platforms
• Marine engineering components
• Arctic and polar vessels
• Shipbuilding repair projects

Whether you need EH36 steel plates for hull construction or EH40 marine steel for arctic-grade conditions, we have you covered.

---

🔹 Available Specifications

Grade	Thickness (mm)	Width (mm)	Length (mm)	Certification
EH32	6–150	1500–3200	6000–12000	ABS / LR / DNV / BV / CCS
EH36	6–150	1500–3200	6000–12000	ABS / LR / DNV / BV / CCS
EH40	6–120	1500–3200	6000–12000	ABS / LR / DNV / BV / CCS

All plates are available with mill test certificates (MTC 3.1/3.2) and third-party inspections such as SGS or BV if required.

---

🔹 Mechanical Properties

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Impact Energy (J, -40°C)
EH32	≥ 315	440–590	≥ 22	34J (min)
EH36	≥ 355	490–620	≥ 21	41J (min)
EH40	≥ 390	510–660	≥ 20	47J (min)

These high strength marine plates maintain excellent toughness in sub-zero temperatures, especially important for arctic marine vessels.

---

🔹 Chemical Composition (Typical Values)

Element	C	Mn	Si	P (max)	S (max)
%	≤ 0.18	≤ 1.6	≤ 0.5	≤ 0.025	≤ 0.025

Customized chemical requirements for corrosion-resistant shipbuilding steel are also available.

---

🔹 Why Choose CJM as Your EH-Series Steel Supplier?

• ✅ Large Inventory of EH32 / EH36 / EH40 plates in popular dimensions
• ✅ Fast Delivery and flexible MOQ
• ✅ Exporting to Southeast Asia, Middle East, Africa, Europe and other countries around the world.
• ✅ Experienced in High-Strength & Marine Steel Processing

Our experienced export team ensures smooth customs clearance, accurate documentation, and prompt shipment.

---

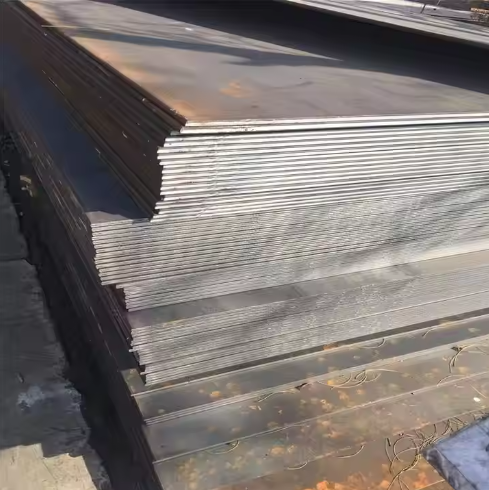

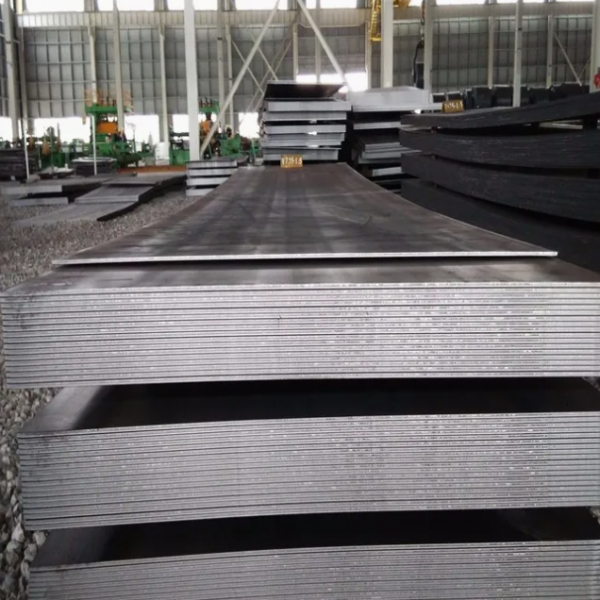

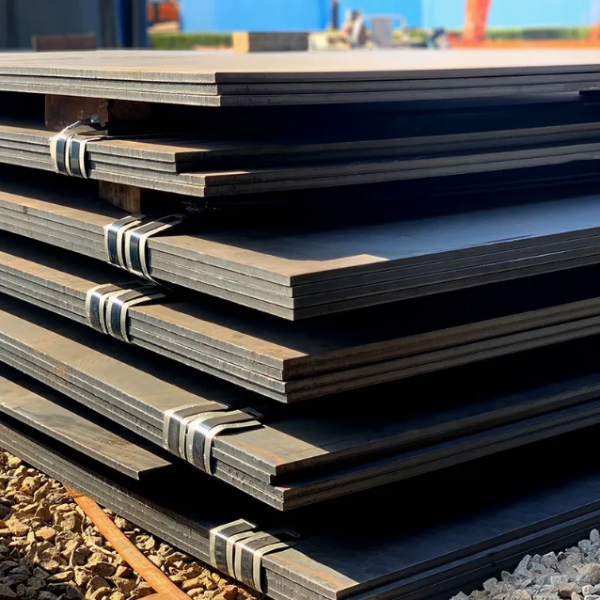

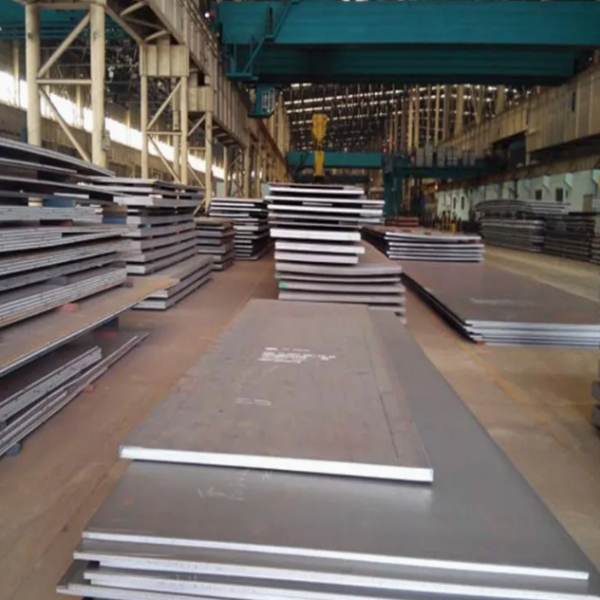

🔹 Detailed Photos:

🔹 Package & Shipment:

• Type: Standard Seaworthy Packing
• Delivery time: 7-15 Days After We Get The Payment
• Size: Based On Orders
• Packaging Details: As Customer Requirement

🔹 Inventory:

Product	Material	Size
Shipbiulding plate	AB/AH32	14*3000*12500	17*2400*7000	24*2200*6300
Shipbiulding plate	AB/AH32	14*3000*12500	22*2400*7800	8*1640*7600
Shipbiulding plate	AB/AH36	15*2450*13000	15*2500*12400	17*2800*9500
Shipbiulding plate	BVAH32	10*1660*9760	12*1800*12000	13.5*1800*10000
Shipbiulding plate	BVAH32	10*1780*9840	12*1800*8000	15*2800*7500
Shipbiulding plate	BVAH32	9*1660*8150	9*1660*9760	9*2270*9150
Shipbiulding plate	BVAH32	9*1660*8450	9*1690*8310	16.5*2000*9500
Shipbiulding plate	BVAH36	10*1900*9000	15*2400*13000	16.5*2100*7700
Shipbiulding plate	BVAH36	18*3000*11300	19*2100*8500	21*2100*13700
Shipbiulding plate	BVAH36	18.5*2150*8000	20*1900*12800	22*2000*8300
Shipbiulding plate	BVAH36	18.5*2200*10200	20*2000*6400	23*2100*7800
Shipbiulding plate	CCSAH32	13*1800*8000	15*2500*8700	19*2300*13400
Shipbiulding plate	CCSAH32	14.5*2400*8000	15*3000*9800	19*2350*9100
Shipbiulding plate	CCSAH32	23.5*2300*12000	16*3000*11550	20*1800*7800
Shipbiulding plate	CCSAH32	9*2400*13000	17*1800*10000	20*1800*8000
Shipbiulding plate	CCSAH36	10*1800*8500	12*2100*11200	16*2200*11700
Shipbiulding plate	CCSAH36	18*2300*8500	20*1800*10500	20*1800*8000
Shipbiulding plate	CCSAH36	18*2400*8000	20*2000*8900	20*2000*7700
Shipbiulding plate	GL-A32	10*2000*8000	14*1650*8000
Shipbiulding plate	GL-A32	12*1800*8000	9*2200*8000
Shipbiulding plate	GL-A36	12*2580*8900	15*1800*12900	15*2000*9500
Shipbiulding plate	GL-A36	13*2000*10000	15*2000*6700	15*2200*10500
Shipbiulding plate	GL-A36	15*2200*12000	17*2500*8050	20*2510*8700
Shipbiulding plate	GL-A36	15*2200*7000	20*1800*8000
Shipbiulding plate	KA32	13*2600*11700	15*2000*6800	19*3000*8000
Shipbiulding plate	KA32	14.5*2500*8000	15*2700*9000	8*2710*8100
Shipbiulding plate	KA32	14.5*2600*8000	17*3000*9000	8*2730*10860
Shipbiulding plate	KA36	10.5*2000*10000	11*1800*12000	12*1800*10000
Shipbiulding plate	KA36	15*1800*10000	15.5*1730*10500	16*3500*7500
Shipbiulding plate	KA36	17*2700*8000	18*2000*10000	16.5*2850*7500
Shipbiulding plate	KA36	17.5*2900*10200	18*2000*9400	18*1800*9200
Shipbiulding plate	KRAH32	14.5*2300*10000	18.5*2340*9600	12*2400*11000
Shipbiulding plate	KRAH32	18*2900*8000	21*2900*9300	13*2500*9300
Shipbiulding plate	KRAH32	14.5*3000*12000	11*2400*11300	15*2500*11800
Shipbiulding plate	NVA32	12*2400*9000	8*1730*9700	9*1750*8960
Shipbiulding plate	NVA32	13*2400*9600	8*2590*10860	9*1910*8660
Shipbiulding plate	NVA32	28*2950*10000	9*1730*9170	18*3000*9000

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
