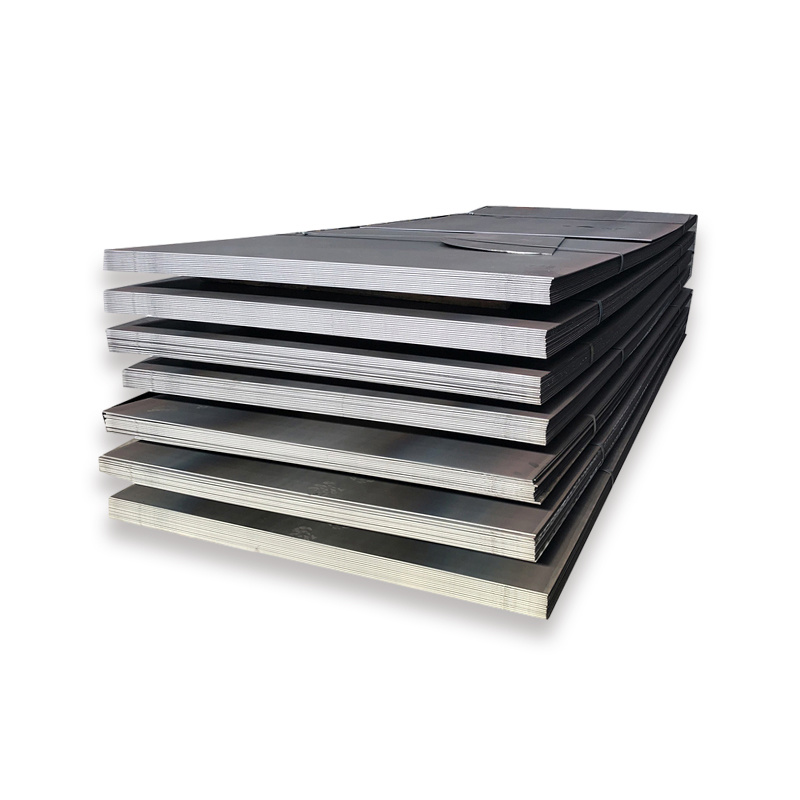

1008 Cold Rolled Steel Plate

1008 Cold Rolled Steel Plate

This alloy is generally used for “commercial quality” cold rolled steel sheet. It is an economical, general purpose steel grade offering moderate strength and toughness. As a standard grade, 1008 steel is used in many common, low-stress applications. Weldability (spot, projection, butt, and fusion) and brazeability are excellent. Applications include extruded, cold headed, cold upset, and cold pressed parts and forms. It has a very good surface finish that is far superior to hot rolled A36.

4135/4140/4142/6150 Alloy Plate EN10083-3 Description

Product Parameters

Product Name	1008 Cold Rolled Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Element	Content (%)
Iron, Fe	99.31-99.7 %
Manganese, Mn	0.30-0.50 %
Carbon, C	0.10 %
Sulfur, S	0.050 %
Phosphorous, P	0.040 %

Mechanical Properties

Properties	Metric	Imperial
Tensile strength	340 MPa	49300 psi
Yield strength (depending on temper)	285 MPa	41300 psi
Elastic modulus	190-210 Gpa	27557-30458 ksi
Bulk modulus (typical for steel)	200 GPa	29000 ksi
Shear modulus (typical for steel)	80.0 GPa	11600 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elongation at break (in 50 mm)	20 %	20 %
Reduction of area	45 %	45 %
Hardness, Brinell	95	95
Hardness, Knoop (converted from Brinell hardness)	113	113
Hardness, Rockwell B (converted from Brinell hardness)	55	55
Hardness, Vickers (converted from Brinell hardness)	98	98
Machinability (based on AISI 1212 steel as 100 machinability)The machinability of group I bar, rod, and wire products can be improved by cold drawing)	55	55

Product Parameters

Product Name	4135/4140/4142/6150 Alloy Plate EN10083-3
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

Brand	C	Si max	Mn	P max	S max	Cr	Mo	V
34CrMo4	0.3-0.37	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	–
42CrMo4	0.38-0.45	0.40	0.6-0.9	0.025	0.035	0.9-1.2	0.15-0.3	–
50CrMo4	0.46-0.54	0.40	0.5-0.8	0.025	0.035	0.9-1.2	0.15-0.3	–
51CrV4	0.47-0.55	0.40	0.7-1.1	0.025	0.025	0.9-1.2	–	0.1-0.25

Mechanical Properties

Thickness mm	Re min. N/mm2	Rm N/mm2	A min %	From min %	KVb min J
≤8	900	1000-1300	10	40	–
8-20	750	1000-1200	11	45	35
20-60	650	900-1100	12	50	35
60-100	550	800-950	13	50	35
100-160	500	750-900	14	55	35

Scope of Application

EN 10083-3 steel plates are used to manufacture tools that require good plasticity and high strength. It is usually selected to manufacture large parts and important parts, such as heavy mechanical shafts, turbine shaft blades, high loads of transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of motor structures.

Q: What is your company’s main products/services?

A: We are a professional manufacturer for Carbon Steel, Alloy Steel and Profile products. We have the experience of steel business for more than 10 years and our products are exported to Mid East,South America,Southeast Asia,Africa,South and East Asia etc.

Q: Can I go to your factory for a visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What are your terms of payment?

A: 30% T/T deposite and 70% balance before shipment.

Q: What is your delivery time?

A: For stocks,we could transport the goods to loading port within 7 days after we received the deposit; For production,it usually takes about 15-30 days after receiving the deposit.

Q: Do you provide samples? Are they free or paid?

A: Samples are available for free,but the courier freight will be covered by customer account.

Q: Do you accept the third party inspection?

A:Yes, we fully accept ‌third-party inspections.

Q: Why should I buy from you not from other suppliers?

A: Integrating the superior resources of China’s steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.

Q:How can you guarantee quality?

A: Always a pre-production sample before mass production;Always 100% inspected before shipment
