PPGI vs PPGL: Key Differences, Comparison & How to Choose

Al comparar PPGI vs PPGL steel sheets, most buyers focus on price and appearance. However, the real difference lies in coating composition, corrosion resistance, and long-term performance.

Comprender la difference between PPGI and PPGL is essential for selecting the right material for roofing, construction, or industrial applications—especially when durability and lifecycle cost matter.

This guide provides a detailed comparison of PPGI vs PPGL, including technical differences, applications, lifespan, and how to choose the right option for your project.

What Is PPGI and PPGL? (Quick Explanation)

Before comparing, it’s important to understand the basics:

• PPGI (Pre-Painted Galvanized Iron)
  Steel sheet coated with zinc (GI) and then painted.
• PPGL (Pre-Painted Galvalume Steel)
  Steel sheet coated with aluminum-zinc alloy (GL) and then painted.

Key Difference in Simple Terms

• PPGI = Zinc coating
• PPGL = Aluminum + Zinc coating

👉 This coating difference directly determines corrosion resistance, heat resistance, and lifespan.

PPGI vs PPGL: Key Differences Explained

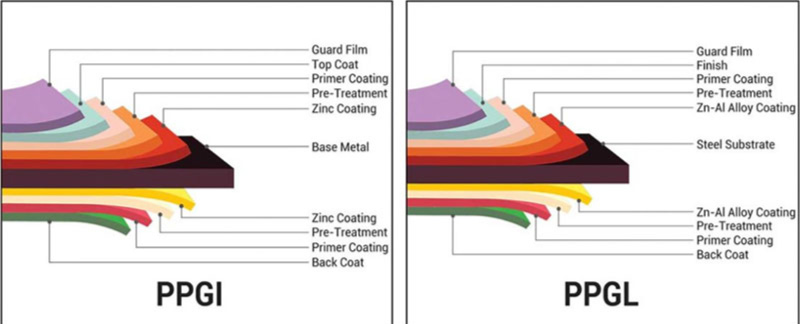

1. Base Metal & Coating Composition

This is the main difference between PPGI and PPGL, and the key factor in any PPGI vs PPGL comparison.

• PPGI (GI base): Pure zinc coating
• PPGL (GL base): Typically 55% aluminum, 43.4% zinc, 1.6% silicon

Impact:

• Aluminum provides barrier protection
• Zinc provides sacrificial protection

👉 PPGL combines both advantages, making it more resistant to oxidation.

---

2. Resistencia a la corrosión

Corrosion resistance is one of the most important factors when comparing PPGI vs PPGL steel sheets.

• PPGI:
  • Performs well in dry or moderate environments
  • Zinc layer corrodes faster in harsh conditions
• PPGL:
  • Excellent resistance in humid, coastal, or industrial environments
  • Aluminum layer slows down corrosion significantly

👉 In aggressive environments, PPGL can last 2–4 times longer than PPGI.

---

3. Lifespan and Durability

Typical service life depends on coating thickness and environment:

• PPGI: 10–15 years
• PPGL: 15–25+ years

Factors affecting lifespan:

• Coating weight (Z/AZ)
• Paint system (PE, SMP, PVDF)
• Exposure conditions

👉 For long-term projects, PPGL provides better durability and lower maintenance cost.

---

4. Heat Resistance

• PPGI: Lower heat resistance due to zinc coating
• PPGL: Better heat reflectivity due to aluminum content

👉 PPGL is more suitable for high-temperature environments or roofing exposed to strong sunlight.

---

5. Surface Appearance & Paint Adhesion

• PPGI:
  • Smoother surface
  • Better paint adhesion
  • More uniform color finish
• PPGL:
  • Slightly different texture
  • May have visible spangle pattern

👉 For aesthetic applications, PPGI is often preferred.

---

6. Cost vs Lifecycle Value

• PPGI:
  • Lower initial cost
  • Higher maintenance over time
• PPGL:
  • Higher upfront cost
  • Lower lifecycle cost due to durability

👉 From a total cost perspective, PPGL is often more economical in long-term use.

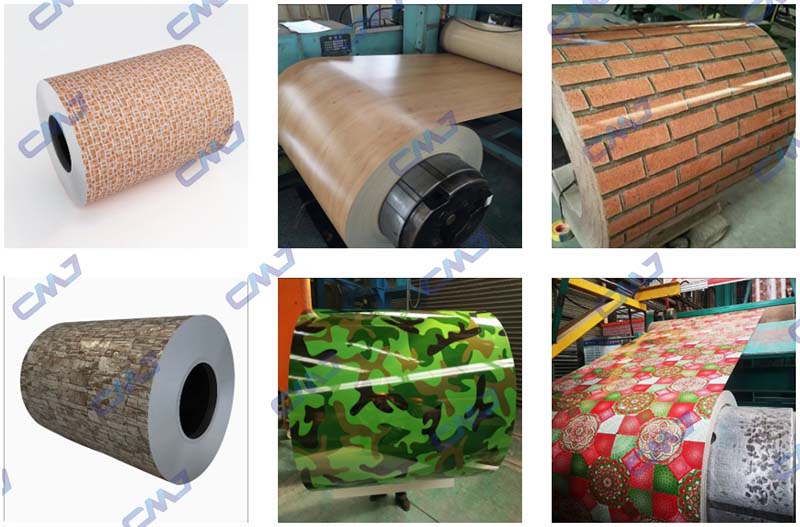

Explore nuestra gama de chapas PPGI estampadas y con dibujos para proyectos decorativos de construcción.

Not sure which one fits your project better?
Tell us your project location, exposure environment, and expected service life, and we’ll help you choose between PPGI or PPGL with a suitable coating and thickness.

PPGI vs PPGL: Applications Comparison

Common Applications of PPGI

• Residential roofing sheets
• Wall cladding
• Interior panels
• Decorative steel applications

👉 Best for cost-sensitive and indoor or mild environments.

---

Common Applications of PPGL

• Industrial buildings
• Warehouses and factories
• Coastal construction projects
• Long-span roofing systems

👉 Best for durability-critical and corrosion-prone environments.

Choosing based on price alone can be misleading.
If you’re comparing PPGI vs PPGL for roofing or long-term outdoor use, we can help you evaluate total cost over service life and recommend the right option for your project.

PPGI vs PPGL: Which Is Better?

This is one of the most searched questions: which is better, PPGI or PPGL?

The answer depends on your application:

Choose PPGI if:

• Budget is limited
• Project is in a dry or low-corrosion environment
• Appearance is a priority

Choose PPGL if:

• You need longer service life
• The project is in coastal or industrial areas
• Maintenance costs must be minimized

👉 In most demanding applications, PPGL is the better long-term solution.

Consulte nuestro blog al respecto para hacerse una idea - Cómo elegir la chapa de acero adecuada para su tejado.

How to Choose Between PPGI and PPGL

Al abastecerse PPGI or PPGL steel sheetsconsidere lo siguiente:

1. Environment

• Dry / indoor → PPGI is sufficient
• Humid / coastal → PPGL recommended

2. Coating Specification

• PPGI: Z40–Z275
• PPGL: AZ50–AZ150

3. Paint System

• PE (economical)
• SMP (better durability)
• PVDF (high-end, long lifespan)

4. Thickness & Application

• Roofing vs wall panels
• Structural vs decorative

5. Supplier Capability

• Consistent coating quality
• Mill test certificates (MTC)
• Export experience

👉 A reliable supplier is as important as choosing between PPGI and PPGL.

Conclusión

La elección entre ppgi vs ppgl depende del entorno, el presupuesto y los objetivos de la aplicación. PPGI es rentable, decorativo y versátil, mientras que PPGL offers superior corrosion and heat resistance for demanding outdoor use. CJM supply PPGI & PPGL coils, sheets, and customized roofing profiles with stable stock, international packing standards, and fast delivery.

Correo electrónico: info@cjmstainlesssteel.com
WhatsApp: +86 18191906640

If you’re still comparing PPGI vs PPGL for your project, feel free to contact us with your application and location. We’ll help you make a practical, cost-effective choice.

FAQ - PPGI y PPGL

• P1: ¿Cuál es la principal diferencia entre PPGI y PPGL?
  PPGI uses zinc-coated steel, while PPGL uses aluminum-zinc alloy coated steel, offering stronger corrosion resistance.
• Q2: What are the full forms of PPGI and PPGL?
  PPGI = Pre-Painted Galvanized Iron
  PPGL = Pre-Painted Galvalume Steel
• Q3: Which is better for roofing, PPGI or PPGL?
  For standard residential or decorative roofing, PPGI is often sufficient and more cost-effective. For industrial, coastal, or long-term roofing projects, PPGL is usually the better choice due to its longer service life.
• Q4: Is PPGL worth the higher price compared to PPGI?
  In many long-term or harsh environments, PPGL can be more economical over time due to lower maintenance and longer lifespan, even though the initial cost is higher.
• Q5: Which material lasts longer in coastal environments, PPGI vs PPGL steel sheets?
  En entornos difíciles, el PPGL suele durar más gracias a su revestimiento de Al-Zn.
• Q6: What thickness is commonly used for roofing?
  0.3 mm to 1.0 mm depending on structure requirements.
• Q7: What is the price difference between PPGI and PPGL coils?
  Los precios varían en función del grosor, el sistema de revestimiento y el volumen del pedido, pero el PPGL suele ser más caro debido a su mayor durabilidad.
• Q8: Can I use PPGI and PPGL sheets for roofing near the sea?
  Sí, pero se recomienda PPGL para prolongar la vida útil en condiciones salinas.
