Las mejores soluciones en chapa de acero para equipos de minería y canteras

Mining and quarry environments expose equipment to extreme wear, impact, and abrasion. Whether you’re handling limestone, iron ore, or coal, your machinery is constantly under attack. That’s why placas de acero resistentes a la abrasión play a critical role in extending equipment life, reducing downtime, and lowering maintenance costs.

Now let’s explore the best wear-resistant steel plate solutions for common mining and quarrying applications, with a focus on selecting the right grades like NM400, NM450y NM500.

Why Mining Equipment Needs Abrasion Resistant Steel

Heavy-duty equipment in mining operations faces several types of wear:

• Sliding abrasion
• Impact wear
• High-pressure contact

Standard carbon steel can’t handle these harsh conditions for long. That’s where abrasion resistant (AR) steel comes in — especially grades like NM400, NM450y NM500, which are engineered to provide high hardness, strength, and durability.

Common Mining Equipment That Uses Wear-Resistant Plates

Let’s look at where these plates are most needed:

Each equipment part has a different abrasion pattern, so choosing the right AR steel plate grade is essential.

Grade Overview: NM400, NM450, NM500

NM400

NM400 is a versatile grade with excellent balance between hardness and toughness. It is widely used in medium wear environments where both abrasion and moderate impact resistance are required.

• Dureza Brinell: 360–450 HBW
• Límite elástico: ≥ 900 MPa
• Resistencia a la tracción: 1100–1250 MPa
• Alargamiento: ≥ 12%
• Charpy Impact (–40°C): ≥ 24 J
• Recommended Thickness Range: 6–60 mm

Aplicaciones:

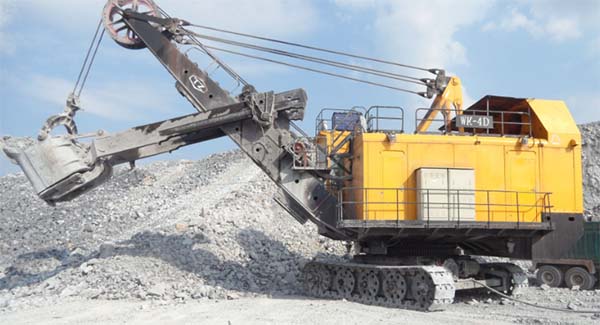

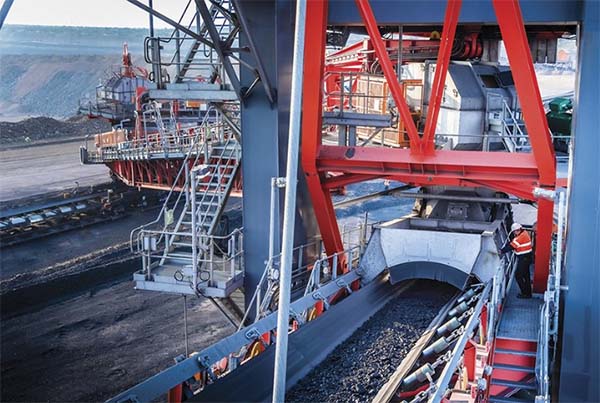

Chutes, hoppers, truck floors, excavator buckets, sidewalls, screens

Ventajas:
✔️ Good weldability and formability
✔️ Cost-effective solution for general wear protection
✔️ Ideal for retrofitting worn-out liners in mid-duty operations

NM450 Steel Plate

Positioned between NM400 and NM500, NM450 offers increased hardness for longer service life without sacrificing too much toughness. It performs well in applications with higher abrasion and moderate to high impact.

• Dureza Brinell: 400–480 HBW
• Límite elástico: ≥ 1000 MPa
• Resistencia a la tracción: 1200–1400 MPa
• Alargamiento: ≥ 10%
• Impact Toughness (–40°C): ≥ 20 J

Aplicaciones:
Loader buckets, dump truck beds, blade edges, feeder liners, quarry impact zones

Ventajas:
✔️ Longer lifespan than NM400
✔️ Better protection against gouging and impact
✔️ Popular in construction and mining crossover projects

NM500 Carbon Steel Plate

NM500 is a high-hardness, high-performance wear plate designed for the most demanding abrasive conditions. It is ideal for industries that require extended component service life and reduced maintenance intervals.

• Dureza Brinell: 470–530 HBW
• Límite elástico: ≥ 1200 MPa
• Resistencia a la tracción: 1350–1600 MPa
• Alargamiento: ≥ 8%
• Impact Toughness (–40°C): ≥ 16 J

Aplicaciones:

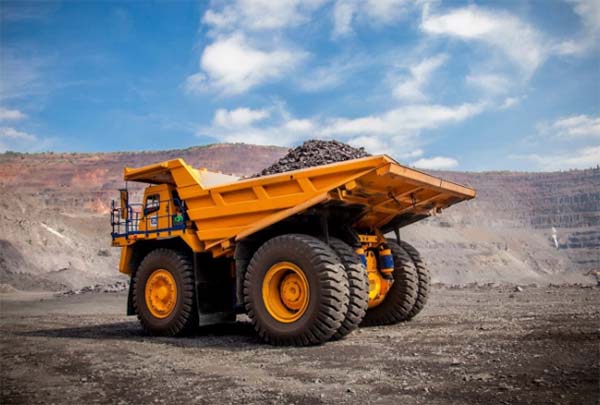

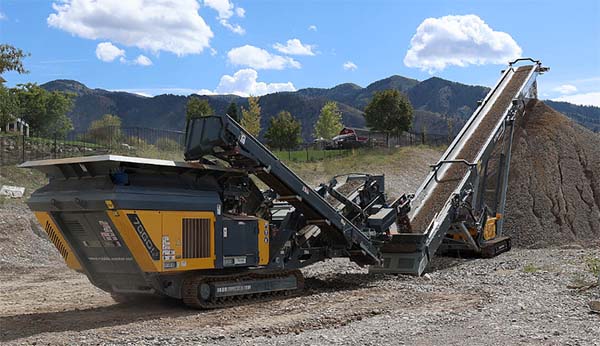

Crusher liners, dump truck impact zones, coal chutes, shot blast parts, heavy-duty hoppers

Ventajas:
✔️ Exceptional abrasion resistance
✔️ Best for aggressive materials like crushed rock, iron ore, slag
✔️ Reduces maintenance frequency and downtime

👉 Explore NM400/NM450/NM500 steel material specification

For even more extreme conditions, check out our dedicated pages for:
🔗 NM550/NM600 Steel Plate | 🔗 AR400/AR450/AR500 Steel Sheet

How to Choose the Right Grade?

Welding and Processing Tips

• Preheating is recommended for thickness >20mm to avoid cold cracking
• Utilice low-hydrogen electrodes suitable for hardened steels
• Slow cooling after welding is helpful to prevent brittle microstructures
• NM400/NM450 generally offer better machinability than NM500

What Makes a Good Wear Plate for Mining?

A qualified mining-grade wear resistant steel plate should provide:

• High surface hardness (≥400 HBW)
• Stable toughness (to resist cracking)
• Good weldability & machinability
• Certified quality (mill test certificates, ISO, SGS)

At CJM Steel, our NM400, NM450y NM500 carbon steel plates are manufactured under strict standards and supplied with full documentation for international buyers.

Choosing the right wear-resistant steel plate can significantly reduce operational costs and improve safety in mining environments. Whether you operate in open-pit mining, underground mining, or quarrying, investing in the correct abrasion resistant steel solution is essential.

Need expert guidance or a tailored quote?
