Q355 H Beam Supplier for Structural & Construction Projects

  • OrigenChina
  • Plazo de entrega3–7 days (stock) / 10–20 days (production)
  • Disponibilidad de existenciasCommon sizes in regular stock
  • SizesStandard lengths + cut-to-length
  • MOQ 1 tonelada
Descripción del producto
Visualización de existencias
Inspección y envasado

Q355 H Beam Product Overview

En Q355 H Beam is a high-strength structural steel widely used in industrial plants, logistic centers, heavy-duty platforms, and large commercial buildings. With 355 MPa minimum yield strength, Q355 provides significantly higher load-bearing capacity than Q235/A36—helping contractors reduce section weight while improving structural efficiency.

Produced according to GB/T 1591, our Q355 beams offer consistent chemistry, excellent weldability, and long-term reliability for demanding engineering applications.

Suministros de acero CJM Q355 H beams in a wide range of sizes and weights, supporting export projects that require stable mechanical performance, dimensional consistency, and reliable documentation for engineering approval.

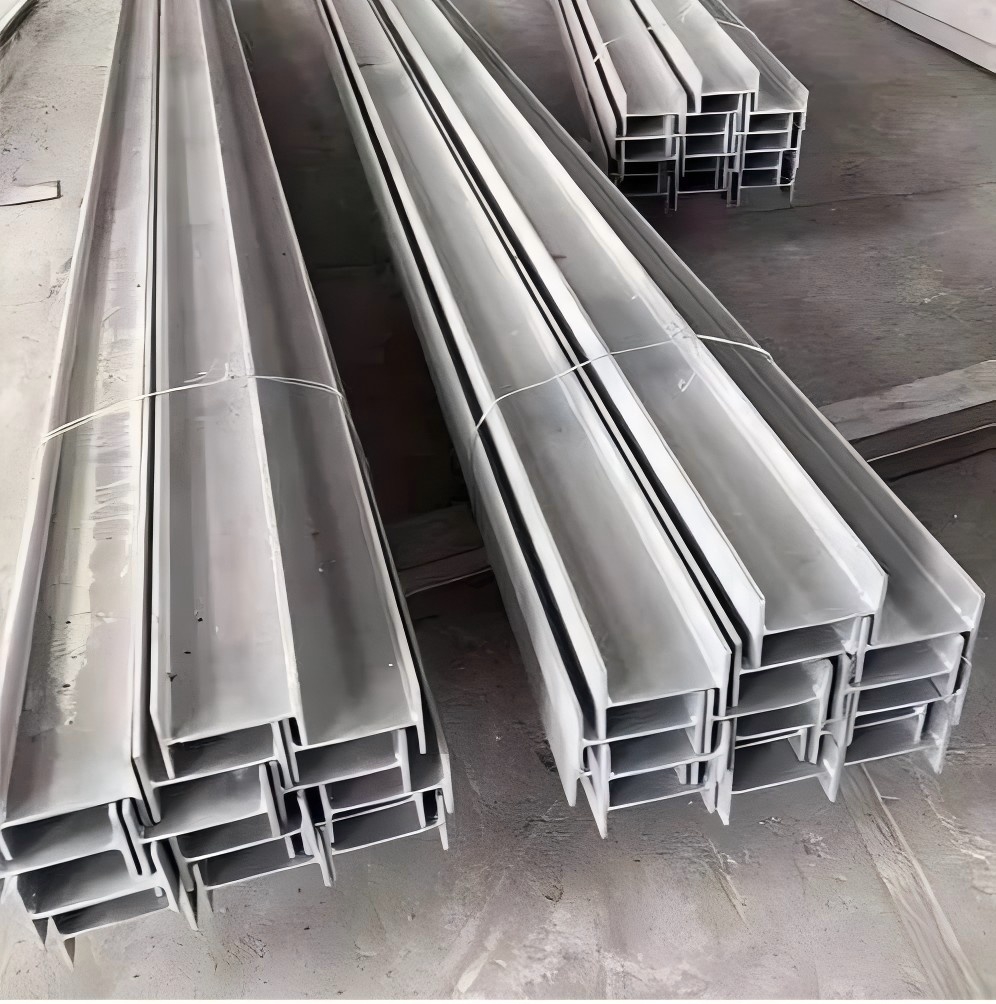

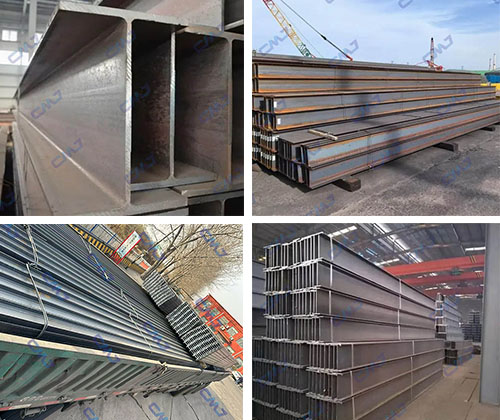

H beam in stock

Q355 H Beam Specifications

  • Available Grades: Q355A, Q355B, Q355C, Q355D, Q355E
  • Estándar: GB/T 11263
  • Section Type: H Beam
  • Condición de entrega: Hot-rolled
  • Longitud: 6m / 9m / 12m / custom-cut
  • Estado de la superficie: Black, shot-blasted, primed, galvanized
  • Tolerance: As per GB standard

Material test certificates (EN 10204 3.1) and dimensional inspection records can be provided upon request.

Available Q355 H Beam Sizes & Weights

Q355 H beams are supplied in commonly specified sizes for structural frames, columns, and heavy-duty supports. Typical sizes include standard H-section profiles with consistent flange and web thickness to meet structural design requirements.

Section (mm)Height (H)Width (B)Web (t1)Flange (t2)Peso (kg/m)
H200×200×8×1220020081256.2
H250×250×9×1425025091481.6
H300×300×10×153003001015110
H350×350×12×193503501219137
H400×400×13×214004001321172

Specific section sizes, unit weights, and availability may vary depending on rolling schedule. Please Contacto for the latest size list and stock status.

Why Q355 H Beams Are Used for Primary Structural Frames

Q355 H beams are specified for primary structural members where high bending resistance and axial load capacity are required. Compared with channels or angles, the H-section provides a higher section modulus, resulting in better load distribution, rigidity, and structural efficiency for columns and main frames.

Based on these structural advantages, Q355 H beams are commonly used in:

  • Industrial plants & manufacturing halls
  • High-rise structures and commercial complexes
  • Machinery frames & heavy equipment platforms
  • Warehouse & logistics centers
  • Large-span roofing systems
  • Infrastructure & structural reinforcement

They are often selected for columns, main girders, and primary load-bearing structures where structural reliability is essential.

Processing, Packing & Export Supply

CJM Steel supports export-oriented supply of Q355 H beams with services including:

  • Length cutting and end finishing
  • Surface treatment upon request
  • Export seaworthy packing suitable for container or bulk shipment
  • Consolidated loading for mixed structural steel orders

If your project requires supplementary A36 or Q355 structural profiles such as U channels, C channels, I-beams, or round bars, they can be consolidated into one container to help reduce overall logistics costs.

Chemical Composition (According to GB/T 1591)

ElementoQ355B (%)Q355C (%)Q355D (%)Q355E (%)
C≤0.20≤0.22≤0.24≤0.26
Si≤0.50≤0.50≤0.50≤0.50
Mn0.90–1.501.0–1.61.10-1.701.20–1.80
P≤0.035≤0.035≤0.035≤0.035
S≤0.035≤0.035≤0.035≤0.035

Mechanical Properties (Standard Minimum Requirements – GB/T 1591)

PropiedadQ355BQ355CQ355DQ355E
Límite elástico≥355 MPa≥355 MPa≥355 MPa≥355 MPa
Resistencia a la tracción490–630 MPa490–630 MPa490–630 MPa490–630 MPa
Alargamiento≥22%≥22%≥22%≥22%

CJM Steel is a trusted h beam supplier according to customers feedback
CJM customers feedback

Why Choose Our Q355 H Beams?

1. Higher Strength for Modern Construction

Q355’s enhanced mechanical properties allow lighter designs with improved rigidity—ideal for high-rise, industrial, and machinery-support structures.

2. Stable Supply & Fast Dispatch

We maintain steady stock of popular Q355 H Beam sizes and ensure reliable delivery for time-sensitive projects worldwide.

3. Quality Assurance with Full Traceability

Full Mill Test Certificates (MTC) are provided for project orders or upon request.

4. Flexible Orders & Value-Added Processing

Custom cut lengths, drilling, welding, surface treatment, and fabrication services help reduce workload for contractors and fabricators.

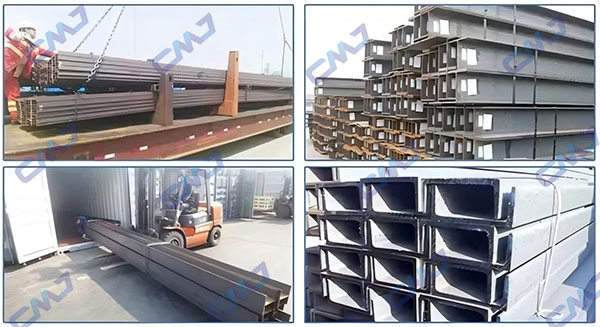

Beams are loaded and ready for shipping

Request Q355 H Beam Availability & Technical Confirmation

To receive accurate pricing and technical confirmation for your project, please provide:

  • Required section size and quantity
  • Steel grade and standard
  • Destination port
  • Delivery time requirement

Contacte con nuestro equipo para availability confirmation, technical documentation, and export coordination for your Q355 H beam order.

Exposición de productos de acero cjmsteel
Tubo galvanizado Stock 2
PREGUNTAS FRECUENTES

P: ¿Cuáles son los principales productos/servicios de su empresa?

R: Somos fabricantes profesionales de productos de acero al carbono, acero aleado y perfiles. Tenemos la experiencia del negocio de acero por más de 10 años y nuestros productos se exportan a Oriente Medio, Suramérica, Asia sudoriental, África, Asia del sur y del este etc.

P: ¿Puedo visitar su fábrica?

R: Por supuesto, invitamos a clientes de todo el mundo a visitar nuestra fábrica.

P: ¿Cuáles son sus condiciones de pago?

R: 30% T/T depósito y 70% saldo antes del envío.

P: ¿Cuál es su plazo de entrega?

R: Para las existencias, podríamos transportar las mercancías al puerto de carga dentro de los 7 días después de recibir el depósito; Para la producción, por lo general toma alrededor de 15-30 días después de recibir el depósito.

P: ¿Proporcionan muestras? ¿Son gratuitas o de pago?

R: Las muestras están disponibles de forma gratuita, pero el flete de mensajería será cubierto por la cuenta del cliente.

P: ¿Aceptan la inspección de terceros?

R: Sí, aceptamos inspecciones de terceros.

P: ¿Por qué debería comprarles a ustedes y no a otros proveedores?

R: Integrando los recursos superiores de la industria siderúrgica de China, proporcionamos a los clientes productos de acero de alta calidad a precios preferenciales, y podemos garantizar que las mercancías se entregan a los clientes a tiempo.

P: ¿Cómo garantizan la calidad?

A: Siempre una muestra de pre-producción antes de la producción en masa;Siempre 100% inspeccionado antes del envío
