NM400 Wear Plate Supplier | NM450 / NM500 Abrasion Resistant Steel Plates

Introducción

NM400 wear plate is the most widely used abrasion resistant steel plate for mining, construction, and material handling equipment. Designed through quenched and tempered processing, NM400 steel plate provides a reliable balance between wear resistance, toughness, and fabrication performance.

As an experienced exporter, CJM supplies NM400 wear plates in stable stock with standard thickness ranges, fast delivery, and cut-to-size processing. For applications requiring higher hardness and longer service life, NM450 and NM500 wear plates are also available.

NM400 / NM450 / NM500 Wear Plates Product Parameters

Product Type	Placas de acero resistentes al desgaste
Grados	NM400 / NM450 / NM500
Espesor	2-100 mm o a petición del cliente
Anchura	1000-3000mm / 1250mm / 1500mm / 2000mm / customized
Longitud	2000–12000 mm or as required
Aplicación	Mining equipment, construction machinery, crushers, hoppers, truck bodies
Estado de la superficie	Black surface or shot-blasted
Condiciones de entrega	Templado y revenido (Q&T)
Embalaje	Robusto paquete marinero
Supply Capability	Plates, cut-to-size parts, OEM processing
Standard stock	Common thicknesses available
MOQ	Flexible, suitable for both project and wholesale orders

For ASTM-grade alternatives, see Placa de acero resistente a la abrasión AR400 / AR450 / AR500.

NM400 Wear Plate (Main Grade for Most Applications)

NM400 wear plate is the most commonly selected grade in the NM series due to its balanced performance and cost efficiency.

It is widely used for:

• Excavator buckets
• Dump truck bodies
• Wear liners and chutes
• General abrasion-resistant structures

Compared with higher hardness grades, NM400 steel plate offers better cutting, welding, and forming performance, making it suitable for fabricated wear parts.

NM450 and NM500 Wear Plates for Higher Wear Resistance

For more demanding working conditions, NM450 and NM500 wear plates provide increased hardness and longer service life.

• Placa de desgaste NM450: Suitable for medium to heavy abrasion environments where longer lifespan is required
• Placa de desgaste NM500: Designed for severe wear conditions such as crushers, mining equipment, and high-impact zones

Using NM500 steel plate can reduce plate thickness while maintaining durability, helping improve payload efficiency.

Chemical Composition of NM400 / NM450 / NM500 Wear Plates

A continuación se detalla la composición química de NM400, NM450, and NM500 steel platesgarantizando a los compradores una calidad y una trazabilidad constantes.

Grado	c	Si	Mn	P	S	Al	Cr+Ni+Mo	Nb+V+Ti
NM400	0.10-0.40	0.20-0.40	1.00-2.00	Máx. 0,015	Máx. 0,003	Mínimo 0,020	Máx. 0,9	Cantidad mínima
NM450	0.10-0.40	0.20-0.40	1.00-2.00	Máx. 0,015	Máx. 0,003	Mínimo 0,020	Máx. 1,2
NM500	0.10-0.40	0.20-0.45	1.00-2.00	Máx. 0,015	Máx. 0,003	Mínimo 0,020	Máx. 1,5

Mechanical Properties of NM Series Wear Plates

CJM assists buyers in selecting the most cost-effective grade based on working conditions, wear intensity, and fabrication requirements.

• NM400 wear plate is recommended for applications requiring good abrasion resistance with easier cutting and forming, such as buckets, liners, and general wear parts.
• Placa de desgaste NM450 offers a balance between hardness and service life, suitable for medium to heavy abrasion environments.
• Placa de desgaste NM500 is designed for severe wear conditions where maximum hardness and extended service life are required, such as crusher liners and dump truck bodies.

For applications requiring even higher hardness levels, please refer to Placa de acero NM550/NM600 product page.

Las siguientes propiedades mecánicas explican por qué NM400, NM450, and NM500 wear plates are widely selected for high-wear environments.

Grado	Tamaño (mm)	RP0.2(Mpa)	Rm(Mpa)	A50(%)	AKV,(ºC)	KV2(J)			HBW
NM400	100	1233	1337	15	-20	35	37	42	415
NM450	60	1345	1434	9.5	-20	72	59	58	455
NM500	50	1608	1706	10.5	-20	43	50	45	495

NM400 vs NM500 Wear Plate: How to Choose

Choosing between NM400 and NM500 wear plates depends on wear intensity, fabrication requirements, and cost considerations.

• Select NM400 wear plate for general wear parts requiring easier processing and lower cost
• Select Placa de desgaste NM500 for maximum wear resistance and longer replacement cycles
• NM450 serves as a balanced option between performance and cost

For most projects, NM400 provides sufficient performance, while NM500 is preferred in high-abrasion environments.

NM400 Wear Plate Supplier with Stock and Processing Service

CJM supplies NM400 wear plates for global projects with stable inventory and flexible processing capabilities.

Our supply advantages include:

• Disponibilidad de existencias: Common thicknesses available for fast shipment
• Cut-to-Size Service: CNC cutting based on drawings
• MOQ flexible: Suitable for both wholesale and project orders
• Export Support: Full documentation including MTC, SGS, BV
• Entrega mundial: Stable shipping to Asia, Middle East, Africa, Europe, and Americas

We focus on providing reliable NM400 steel plate supply for long-term project cooperation.

Applications of NM400 / NM500 Wear Plates

NM-series wear plates are widely used in industries where abrasion resistance is critical:

• Minería y canteras: Revestimientos de trituradoras, cucharas cargadoras, carrocerías de volquetes.
• Construcción: Hormigoneras, cuchillas de bulldozer, equipos de pavimentación de carreteras.
• Manipulación de materiales: Transportadores de carbón, tolvas, toboganes y silos.
• Industria energética: Pulverizadores de carbón de centrales eléctricas, entornos de abrasión a alta temperatura.

Utilizando Placa de desgaste NM500 allows thinner plate design while maintaining durability, which can help improve payload efficiency and reduce overall equipment weight.

For practical examples and selection guidance, see NM400 / NM450 / NM500 wear plates for mining and quarry equipment covering crushers, loaders, dump trucks, and bulk material handling systems.

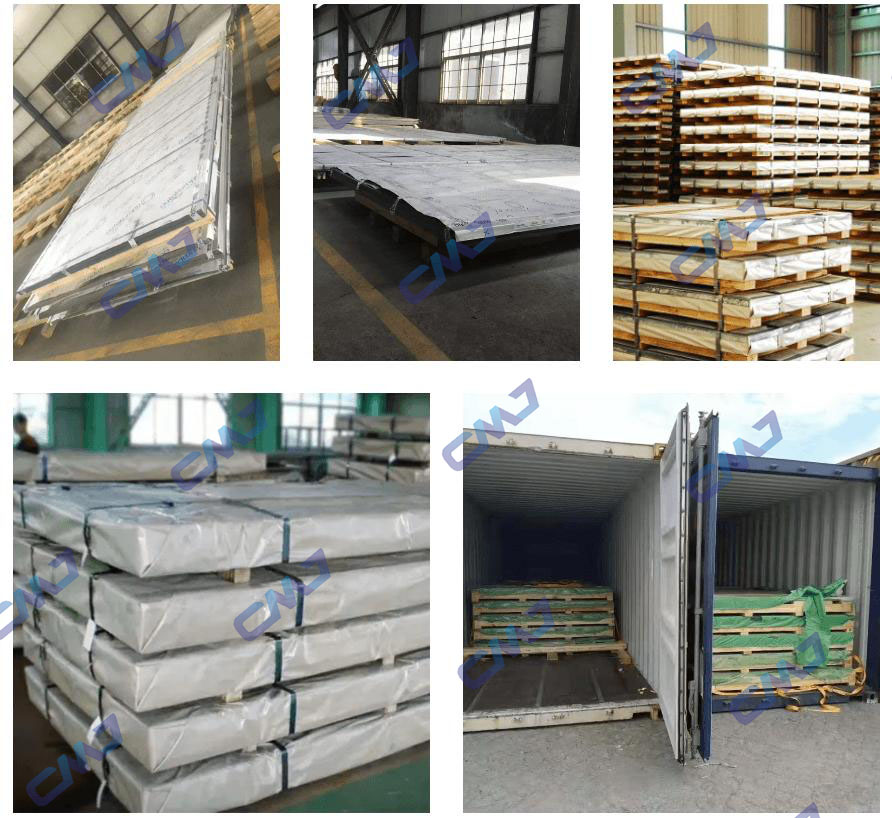

Embalaje y envío

• Tipo: Embalaje marítimo estándar
• Plazo de entrega: 7-15 días después de recibir el pago
• Tamaño: En función de los pedidos
• Detalles del embalaje: Según las necesidades del cliente
• Disponibilidad: Amplio inventario listo para la exportación mundial

Como NM-series wear plates exporter from China, CJM provides stable supply, export documentation support, and OEM processing services to meet international project requirements.

¿Por qué elegir CJM como proveedor de placas de acero NM400/NM500?

Suministros CJM NM400, NM450, and NM500 wear plates for global customers with consistent quality control and reliable delivery. Our products are shipped to over 40 countries with certifications such as ISO 9001, SGS, and BV.

• Precios competitivos: Competitive wear plate pricing based on stable stock, optimized sourcing, and flexible order quantities.
• Calidad certificada: ISO 9001, SGS certified with full mill test certificates.
• Entrega fiable: Entrega rápida y fiable en todo el mundo, con opciones de personalización para satisfacer los requisitos de su proyecto.
• Alcance mundial: Exportado a más de 40 países de Asia, Europa, Oriente Medio, África y América.
• Amplia gama de existencias: Tenemos un gran inventario para envío inmediato.
• Servicio personalizado: Servicios de corte, plegado y soldadura adaptados a las necesidades del proyecto.

Preguntas frecuentes sobre las planchas de acero NM400/NM500

• Q1: What is NM400 wear plate mainly used for?
  A: NM400 wear plate is commonly used in mining equipment, construction machinery, and material handling systems where stable abrasion resistance and good fabrication performance are required.
• Q2: Is NM400 wear plate suitable for cutting and welding?
  A: Yes. NM400 wear plate can be cut, welded, and formed using proper procedures, making it suitable for fabricated wear parts such as buckets, liners, and chutes.
• Q3: What thickness range is available for NM400 wear plate?
  A: NM400 wear plates are commonly supplied in thicknesses from 2 mm to 100 mm, with standard sizes available from stock and cut-to-size options upon request.
• Q4: What is the difference between NM400 and NM500 wear plates?
  A: NM500 wear plate offers higher hardness and abrasion resistance than NM400, making it suitable for more severe wear conditions, while NM400 is easier to process and widely used for general wear parts.
• Q5: Are NM500 wear plates suitable for high-impact applications?
  A: Yes. NM500 combines high hardness with controlled toughness, allowing it to perform under both abrasion and moderate impact conditions when properly applied.
• Q6: How does CJM ensure competitive wear plate price?
  A: By maintaining large stock and direct supplier channels, we provide cost-effective abrasion resistant steel plates without sacrificing quality.

Solicitar presupuesto

En busca de NM400, NM450, or NM500 wear plates para su proyecto?

Contact CJM to discuss specifications, quantities, and processing requirements.

Send your inquiry with size, quantity, and application details to receive a fast quotation.

Solicitar presupuesto

P: ¿Cuáles son los principales productos/servicios de su empresa?

R: Somos fabricantes profesionales de productos de acero al carbono, acero aleado y perfiles. Tenemos la experiencia del negocio de acero por más de 10 años y nuestros productos se exportan a Oriente Medio, Suramérica, Asia sudoriental, África, Asia del sur y del este etc.

P: ¿Puedo visitar su fábrica?

R: Por supuesto, invitamos a clientes de todo el mundo a visitar nuestra fábrica.

P: ¿Cuáles son sus condiciones de pago?

R: 30% T/T depósito y 70% saldo antes del envío.

P: ¿Cuál es su plazo de entrega?

R: Para las existencias, podríamos transportar las mercancías al puerto de carga dentro de los 7 días después de recibir el depósito; Para la producción, por lo general toma alrededor de 15-30 días después de recibir el depósito.

P: ¿Proporcionan muestras? ¿Son gratuitas o de pago?

R: Las muestras están disponibles de forma gratuita, pero el flete de mensajería será cubierto por la cuenta del cliente.

P: ¿Aceptan la inspección de terceros?

R: Sí, aceptamos inspecciones de terceros.

P: ¿Por qué debería comprarles a ustedes y no a otros proveedores?

R: Integrando los recursos superiores de la industria siderúrgica de China, proporcionamos a los clientes productos de acero de alta calidad a precios preferenciales, y podemos garantizar que las mercancías se entregan a los clientes a tiempo.

P: ¿Cómo garantizan la calidad?

A: Siempre una muestra de pre-producción antes de la producción en masa;Siempre 100% inspeccionado antes del envío
